brand:
pvcellschainitem no.:
SW30KTL3-EUPower:
30KWNumber Of MPP Trackers:
2Certificate:
CE/IECWarranty:
5years/10years

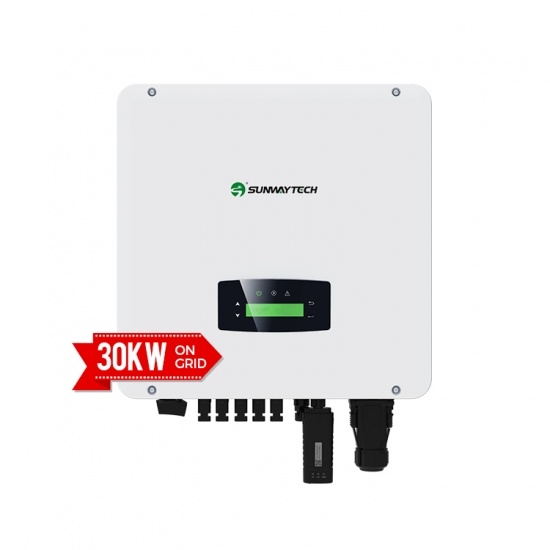

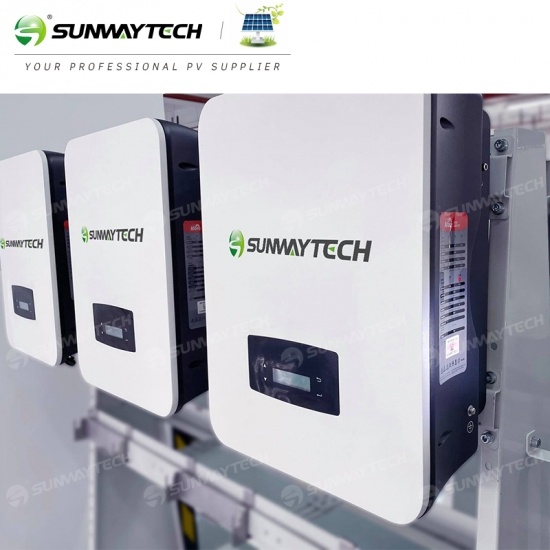

The Three-phase string inverters are designed for commercial and power plant PV svstem applications, rating from 30kW to 60kW.All models withaluminum housings which is anodized, increasing durability and efectively prevents corosion. Equipped with external inductors, ensure eficient heatdissipation, which significantly improves the reliability and extends the life of the inverters.

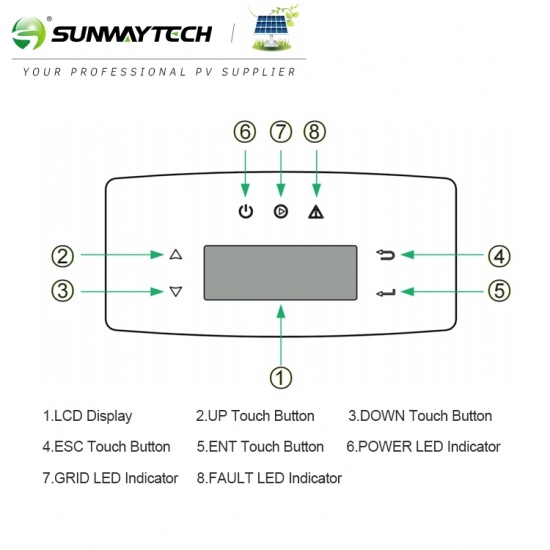

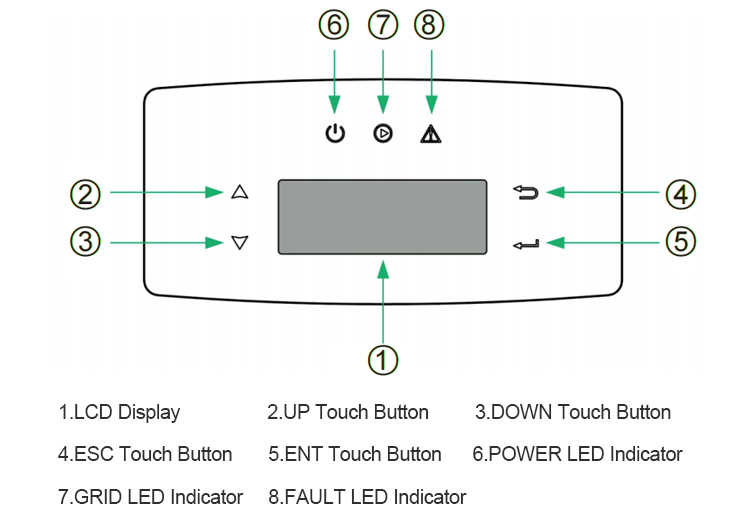

The inverter menu is activated by sensor touch buttons. Communication implements are via the Wi-Fi module (can be changed to Ethernet / GPRS). Checkthe system status anytime and anywhere via online portal or APP.
System Architecture

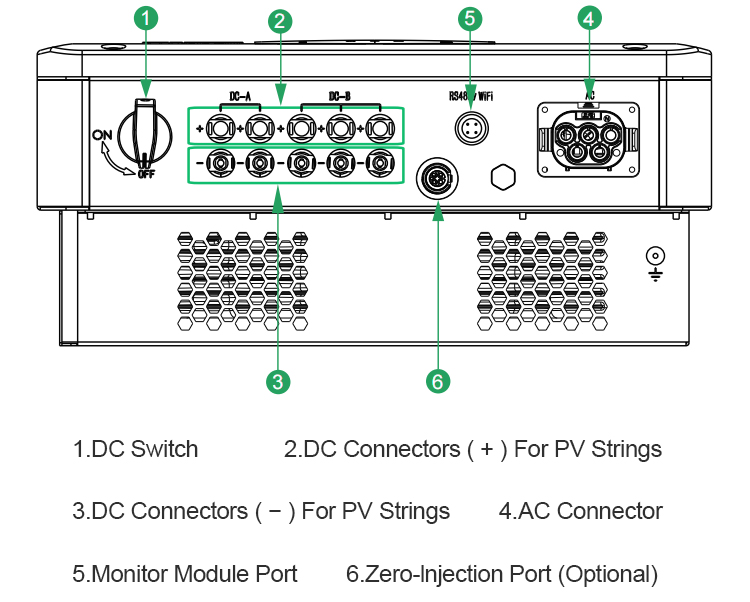

Product Details
Product Parameter
|
PV Input Data
|
SW30KTL3-EU
|
|
Max. DC Power(W)
|
45000
|
|
Max. DC Voltage （V)
|
1100
|
|
MPPT Voltage Range (V)
|
200-1000
|
|
MPPT Full Power Voltage Range (V)
|
500-850
|
|
Rated Input Voltage （V)
|
620
|
|
Start-up Voltage（V)
|
200
|
|
Max. Input Current (A)
|
38x2
|
|
Max. Short Current (A)
|
48x2
|
|
No. of MPP Tracker / No. of PV String
|
2/5
|
|
Input Connector Type
|
MC4
|
|
AC Output Data
|
|
|
Max. Output Power (VA)
|
33000
|
|
Nominal Output Power (W)
|
30000
|
|
Max. Output Current (A)
|
48
|
|
Nominal Output Voltage (V)
|
3P+N+PE /3P+PE 230/400
|
|
Grid Voltage Range
|
260Vac-519Vac (according to local standard)
|
|
Nominal Output Frequency（Hz)
|
50/60
|
|
Grid Frequency Range
|
45-55Hz/55-65Hz (according to local standard)
|
|
Output Power Factor
|
1 default (adjustable from 0.8 leading to 0.8 lagging)
|
|
Output Current THD
|
<3%
|
|
Efficiency
|
|
|
Max. Efficiency
|
98.50%
|
|
Euro Efficiency
|
98.10%
|
|
Protection
|
|
|
PV Reverse Polarity Protection
|
YES
|
|
PV Insulation Resistance Detection
|
YES
|
|
AC Short Circuit Protection
|
YES
|
|
AC Over Current Protection
|
YES
|
|
AC Over Voltage Protection
|
YES
|
|
Anti-Islanding Protection
|
YES
|
|
Residual Current Detection
|
YES
|
|
Over Temperature Protection
|
YES
|
|
Integrated DC switch
|
YES
|
|
Surge Protection
|
Integrated (Type II)
|
|
Smart IV Curve Scaning
|
YES
|
|
Quick Arc Fault Circuit Interruption
|
Optional
|
|
General Data
|
|
|
Dimensions (W x H × D, mm)
|
450×485×210
|
|
Weight(kg)
|
27
|
|
Protection Degree
|
IP65
|
|
Enclosure Material
|
Aluminum
|
|
Ambient Temperature Range (°C)
|
-25 to 60
|
|
Humidity Range
|
0-100%
|
|
Topology
|
Transformerless
|
|
Communication Interface
|
RS485 /WiFi /Wire Ethernet /GPRS (optional)
|
|
Cooling Concept
|
Intelligent Fan Cooling
|
|
Noise Emission(db)
|
<51
|
|
Night Power Consumption (W)
|
<1
|
|
Max. Operation Altitude (m )
|
≤4000
|
|
Certifications and Standards
|
|
|
EMC Standard
|
EN/IEC 61000-6-2, EN/IEC 61000-6-3, EN61000-3-2, EN61000-3-3, EN61000-3-11, EN61000-3-12
|
|
Safety Standard
|
IEC 60068, UL1741, EN62109
|
|
Grid-connection
|
IEEE1547, CSA C22, EN50549, VDE4105,VDE0126, RD1699, ABNT NBR16149& 16150, AS4777.2, NB/T32004,G98/G99,IEC61727
|

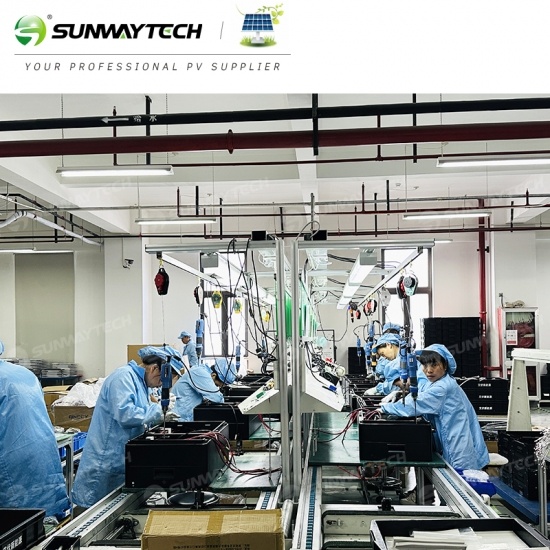

Our Factory
