brand:
pvcellschainitem no.:
MOD 5000TL3-Xshipping port:
ShanghaiPower:
5000Voltage:
140V-1000VNumber Of MPP Trackers:
2Certificate:
CE, TUVLead Time:
15 DayPayment:
T/T, L/C, Paypal, Western UnionWarranty:
3-5 Years
The Growatt MOD inverters have 2 MPPT, Type II SPD on DC and AC side, string monitoring, and Arc-Fault Circuit Interrupter (AFCI) function. The Growatt MOD inverters have a 10 years product warranty.

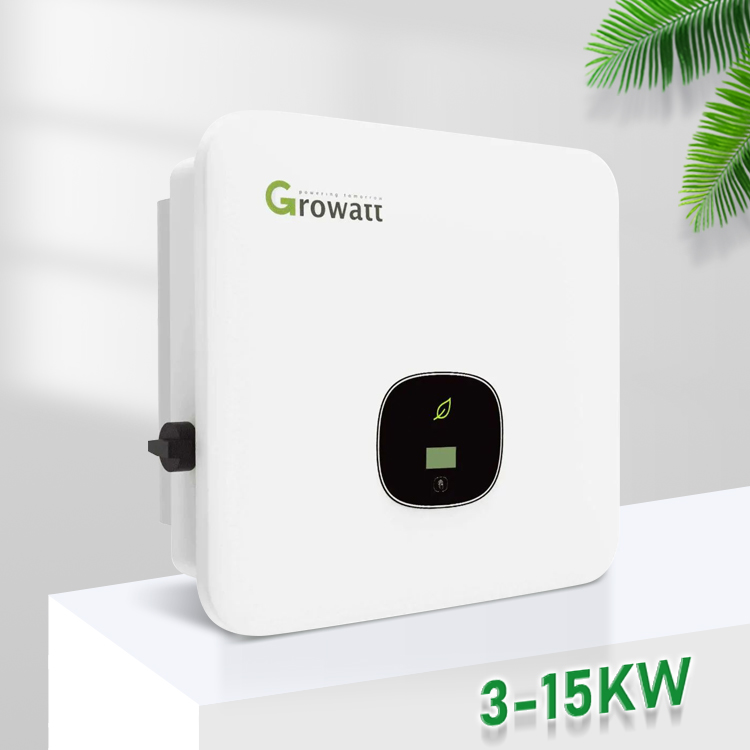

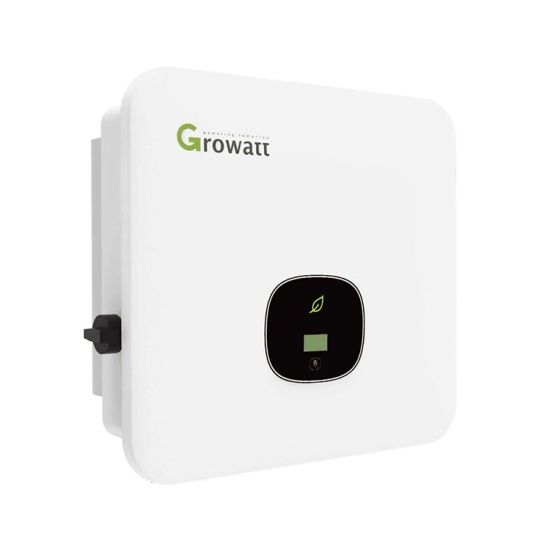

The Growatt MOD series is the latest 3-phase inverter solution designed specifically for residential use. The MOD series features an aesthetically pleasing, compact design that will add visual appeal to your home. With an outstanding efficiency of up to 98.3%,the Growatt MOD 3-phase inverter is a smart choice that offers great performance at an excellent price point.
|
Datasheet
|
MOD 3000TL3-X
|
MOD 5000TL3-X
|
MOD 7000TL3-X
|
MOD 9000TL3-X
|
MOD 10000TL3-X
|
MOD 13000TL3-X
|
MOD 15000TL3-X
|
|
Input data (DC)
|
|||||||
|
Max. recommended PV power (for module STC)
|
4500W
|
7500W
|
10500W
|
13500W
|
15000W
|
19500W
|
22500W
|
|
Max. DC voltage
|
1100V
|
||||||
|
Start voltage
|
160V
|
200V
|
|||||
|
Nominal voltage
|
580V
|
||||||
|
MPPT voltage range
|
140V-1000V
|
||||||
|
Output data (AC)
|
|||||||
|
AC nominal power
|
3000W
|
5000W
|
7000W
|
9000W
|
10000W
|
13000W
|
15000W
|
|
Max. AC apparent power
|
3300W
|
5500W
|
7700W
|
9900W
|
11000W
|
14300W
|
16500W
|
|
Nominal AC voltage（range*）
|
220V/380V, 230V/400V (340-440V)
|
||||||
|
AC grid frequency（range*）
|
50/60 Hz (45-55Hz/55-65 Hz)
|
||||||
|
Max. output current
|
5.0A
|
8.3A
|
11.7A
|
15.0A
|
16.7A
|
21.7A
|
25.0A
|
|
Adjustable power factor
|
0.8leading…0.8lagging
|
||||||
|
Efficiency
|
|||||||
|
MAX. efficiency
|
98.3%
|
98.3%
|
98.6%
|
98.6%
|
98.6%
|
98.6%
|
98.6%
|
|
European efficiency
|
97.5%
|
97.5%
|
98.1%
|
98.1%
|
98.1%
|
98.2%
|
98.2%
|
|
MPPT efficiency
|
99.9%
|
||||||
|
General data
|
|||||||
|
Dimensions (W / H / D)
|
425/387/147mm
|
425/387/147mm
|
425/387/178mm
|
425/387/178mm
|
425/387/178mm
|
425/387/178mm
|
425/387/178mm
|
|
Weight
|
12.5kg
|
12.5kg
|
14kg
|
14kg
|
14kg
|
16kg
|
16kg
|
|
Operating temperature range
|
–25°C ... +60°C
|
||||||
|
Protection degree
|
IP66
|
||||||
|
Relative humidity
|
0~100%
|
||||||
|
Altitude
|
4000m
|
||||||
|
Display
|
OLED+LED/WIFI+APP
|
||||||
|

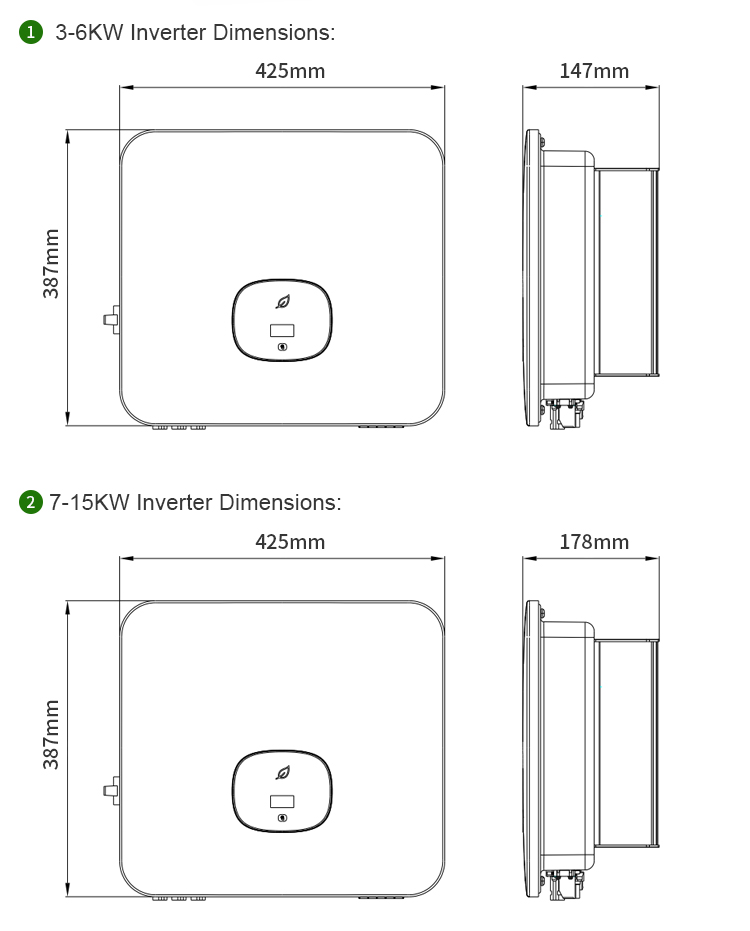

Size and weight
|
||||
|
Model
|
Height (H)
|
Width (W)
|
Depth (D)
|
Weight
|
|
MOD 3-6KTL3-X
|
387mm
|
425mm
|
147mm
|
12.5kg
|
|
MOD 7-11KTL3-X
|
387mm
|
425mm
|
178mm
|
14kg
|
|
MOD 12 - 15KTL3 - X & MOD 7- 11KTL3-X-AU
|
387mm
|
425mm
|
178mm
|
16.0kg
|
|

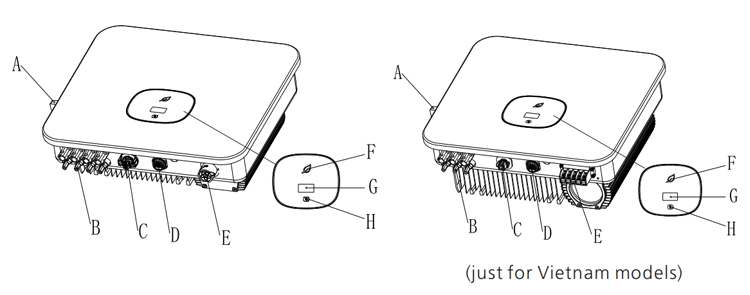

The appearance instructions are as follows:
|
|||
|
No.
|
Name
|
No.
|
Name
|
|
A
|
DC switch
|
E
|
AC terminal
|
|
B
|
PV terminal
|
F
|
LED indicator
|
|
C
|
RS485 port
|
G
|
LCD screen
|
|
D
|
USB port
|
H
|
Touch button
|
