brand:
pvcellschainitem no.:
MIN 4200TL-XPower:
6.5KWVoltage:
220V/380V, 220V/380vCertificate:
CE, IEC 62109-1/2, VDE 0126-1-1, TUV,Payment:
T/T, L/C, Alipay, Paypal, Western UnionWarranty:
5year
|
Datasheet
|
MIN3000TL-X
|
MIN4000TL-X
|
MIN5000TL-X
|
MIN5500TL-X
|
|
Max. recommended PV power
(for module STC)
|
4680W
|
5460W
|
5980W
|
6500W
|
|
Max. DC voltage
|
500V
|
500V
|
500V
|
500V
|
|
Start voltage
|
100V
|
100V
|
100V
|
100V
|
|
MPP work voltage range/
nominal voltage
|
80V-550V /360V
|
80V-550V /360V
|
80V-550V /360
|
80V-550V /360V
|
|
Full load dc voltage range
|
190V-500V
|
150V-500V
|
160V-500V
|
175V-500V
|
|
Max. input current of tracker A/tracker B
|
10A/10A
|
15A/15A
|
15A/15A
|
15A/15A
|
|
Max. input current per string of tracker A/tracker B
|
10A/10A
|
15A/15A
|
15A/15A
|
15A/15A
|
|
Number of independent MPP trackers / strings per MPP tracker
|
2/1
|
2/1
|
2/1
|
2/1
|
|
Output (AC)
|
||||
|
Rated AC output power
|
3600W
|
4200W
|
4600w
|
5000w
|
|
Max. AC apparent power
|
3600VA
|
4200VA
|
4600VA
|
5000VA
|
|
Max. output current
|
16.3A
|
19A
|
20.9A
|
22.7A
|
|
AC nominal voltage; range
|
220V/230C/240V;180Vac-280Vac
|
220V/230C/240V;180Vac-280Vac
|
220V/230C/240V;180Vac-280Vac
|
220V/230C/240V;180Vac-280Vac
|
|
AC grid frequency; range
|
50Hz,60Hz / 5Hz
|
50Hz,60Hz / 5Hz
|
50Hz,60Hz / 5Hz
|
50Hz,60Hz / 5Hz
|
|
Displacement power factor,
configurable
|
0.8leading…
0.95lagging
|
0.8leading…
0.95lagging
|
0.8leading…
0.95lagging
|
0.8leading…
0.95lagging
|
|
THDi
|
<3%
|
<3%
|
<3%
|
<3%
|
|
AC connection
|
Single phase
|
Single phase
|
Single phase
|
Single phase
|
Commercial Use 10KW 12KW 18KW 20KW 3 Phase Grid Tied Solar Inverter

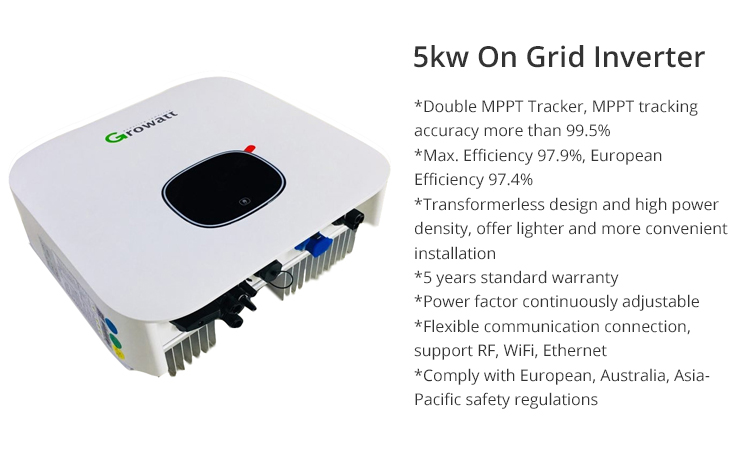

3KW 4KW 5KW 6KW Grid Tied Solar Inverter for Home or Commercial Use
On Grid-Tied Solar Power Inverter 30000-50000TL3-S, Max Recommended PV Power 60000 Watt, Maximum efficiency of 99%-Dual MPP Trackers, 3-Phase Grid-Tied Solar Inverter Integrated DC Switch
Growatt on grid solar inverter DC AC 10kw 15kw 20kw 30kw Standard and protect well carton or wooden box with palletPortSHANGHAI or any china port

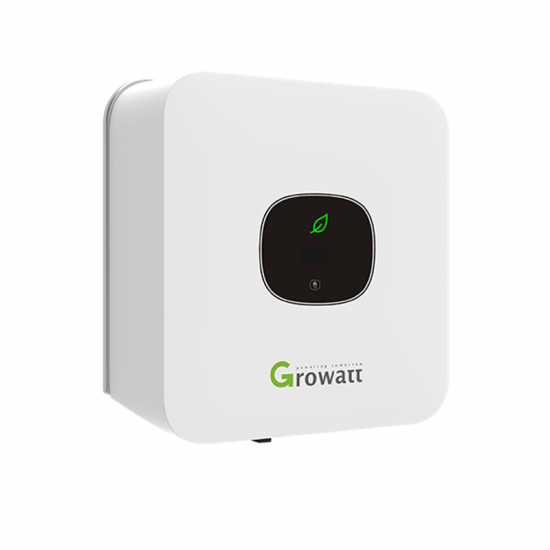

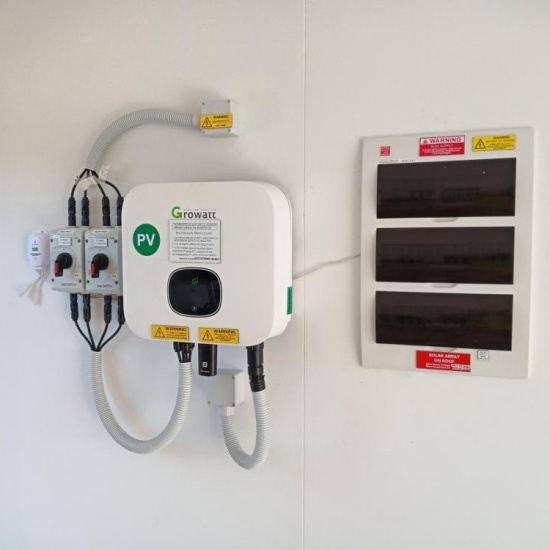

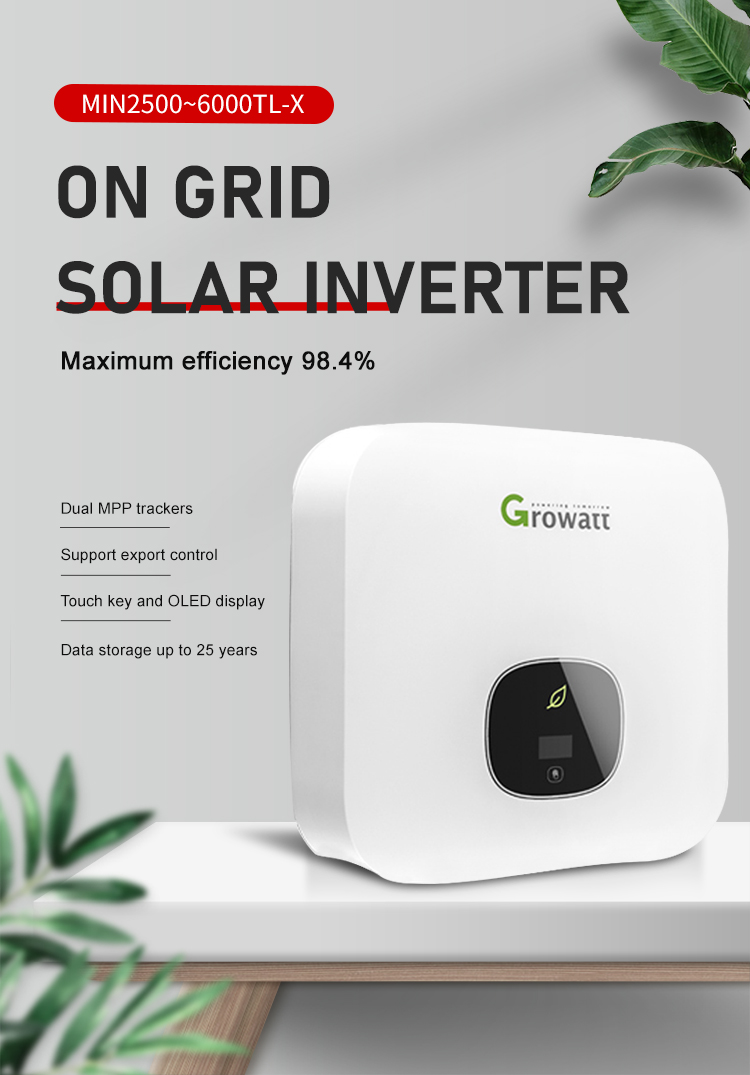

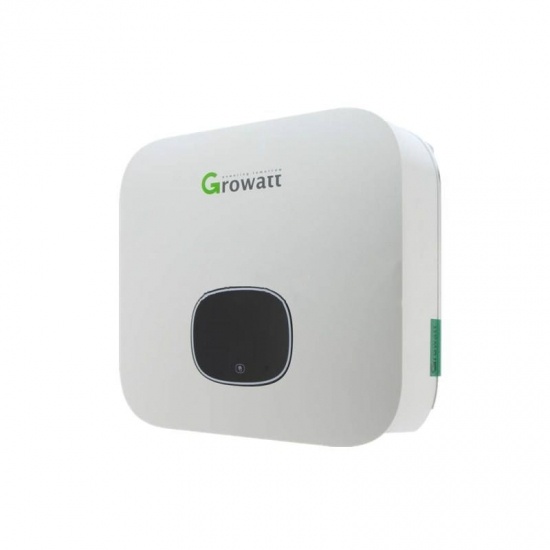

This is the latest model from Growatt’s Smart Inverter Solutions for your rooftop solar PV at home. The MIN series is a beautiful,compact design that unlike some other inverters, has an easy to use touch button. This is so you can find out what your system hasbeen doing, quickly. While it is a pleasure to use, it has a great efficiency level of 98.1% too.
