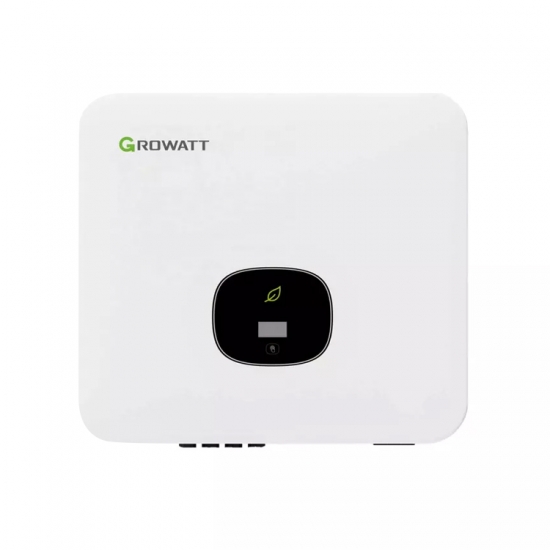

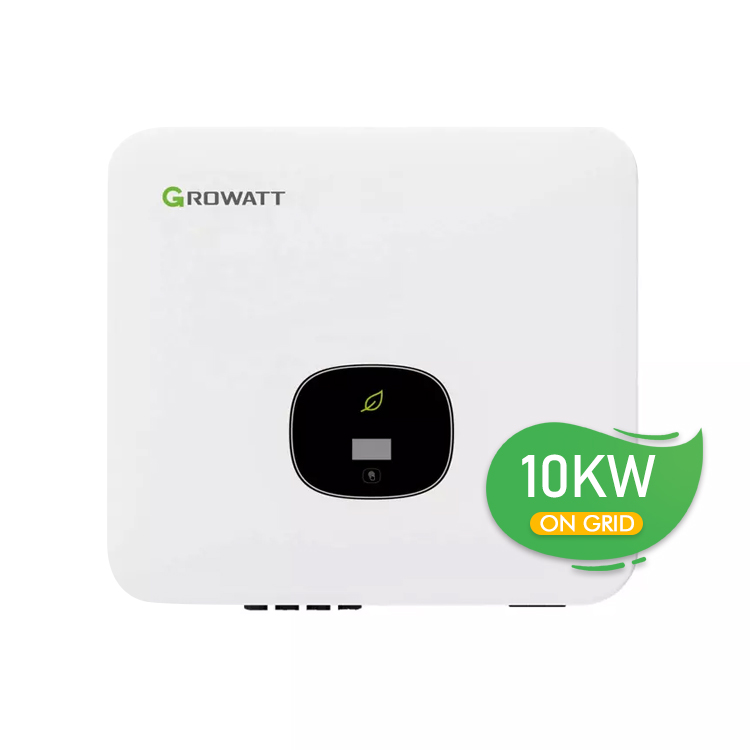

Growatt 10kw inverter on grid min 7000 tl-x(e) min 10000 tl-x single three phase 220v solar inverter

This is the latest model from Growatt’s Smart Inverter Solutions for your rooftop solar PV at home. The MIN series is a beautiful,compact design that unlike some other inverters, has an easy to use touch button. This is so you can find out what your system hasbeen doing, quickly. While it is a pleasure to use, it has a great efficiency level of 98.1% too.
  • product origin:

    Anhui
  • brand:

    pvcellschain
  • item no.:

    MIN 10000TL-X
  • shipping port:

    Shanghai
  • lead time:

    10-30
  • payment:

    EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,
  • Voltage:

    600V
  • Warranty:

    5 Years
  • product details

Advantage

➢Maximum efficiency of 98.1%

➢ Input voltage range: 60--600Vdc
➢ Reactive power regulate
➢ Integrated DC switch
➢ Multi MPP controller
➢ DSP controller
➢ Touch control
➢ Multi active power control mode

➢ Easy installation

Specification
Model Name
MIN 7000TL-X(E)
MIN 8000TL-X(E)
MIN 9000TL-X
MIN 10000TL-X
Max input DC voltage
600V
Max input DC current
13.5/27A
13.5/13.5/27A
Start voltage
100V
MPP voltage range
60V~550V
AC nominal voltage
230V
AC grid frequency
50/60 Hz
Max. apparent power
7000VA
8000VA
9000VA
10000VA
AC normal output current
31.8A
36.4A
40.9A
45.5A
Power factor
0.8leading…0.8lagging
Environmental Protection Rating
IP66
DC reverse-polarity protection
Integrated
DC switch
Integrated
DC Surge protection
Type II
AFCI
Optional
AC short-circuit protection
Integrated
AC surge protection
Type III
Operation Ambient temperature
-25...+60℃ (-13...+ 140°F) with derating above 45°C(113°F)

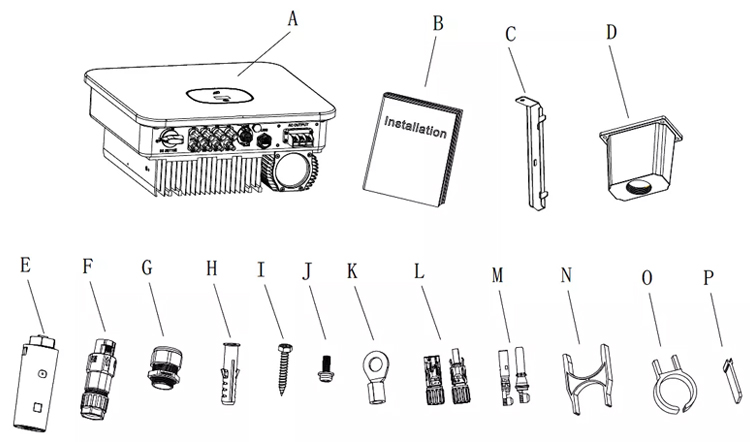

Object
Description
Quantity
Object
Description
Quantity
A
Inverter
1
H
Plastic expansion tube
3
B
Quick Guide
1
I
Self-tapping screw
3
C
Mounting bracket
1
J
Security screw
1
D
AC waterproof cover
1
K
AC OT terminal
3
E
Monitor(Optional)
1
L*
PV Male &Female cable coupler
3/4
F
4PIN COM port signal connector
1
M*
PV Pin&Socket contacts
3/4
G
Waterproof connector
1
O
PV terminal removal tool
1
P
AC terminal block insulation partition
2
* MIN7000-8000TL- X(E) 3 MIN9000-10000TL-X 4
