brand:
pvcellschainitem no.:
Max 100-125KTL3-XVoltage:
400V/380V (340-440VAC)Number Of MPP Trackers:
10Certificate:
CEPayment:
T/T, L/C, Alipay, Paypal, Western UnionWarranty:
10 Years

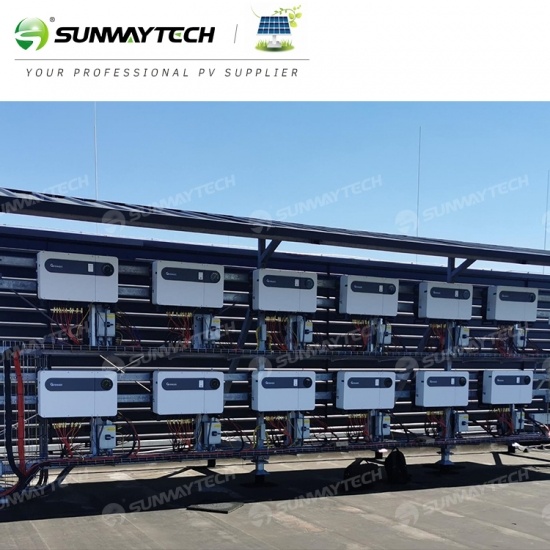

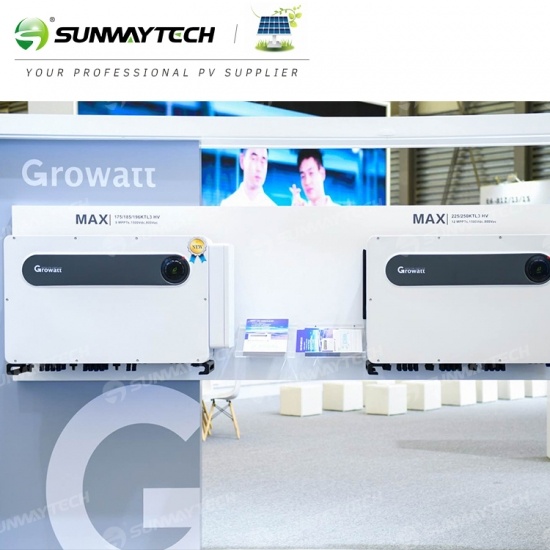

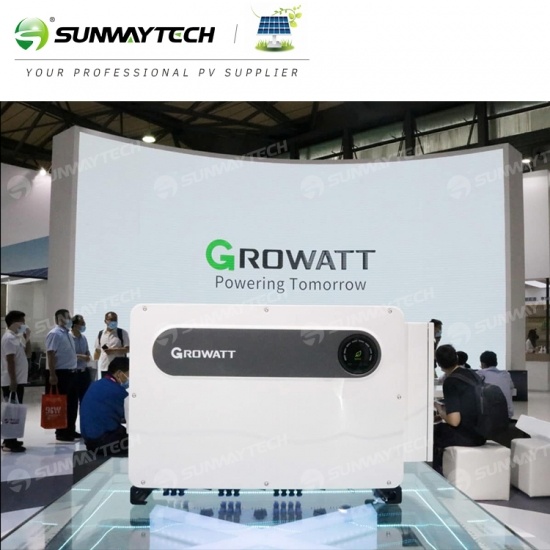

Growatt MAX 100K-125KTL3-X LV inverters are ideal for commercial roofs and large distribution projects.
Specifications
|
Datasheet
|
MAX
100KTL3-X LV
|
MAX
110KTL3-X LV
|
MAX
120KTL3-X LV
|
MAX
125KTL3-X LV
|
|
Input data (DC)
|
||||
|
Max. DC voltage
|
1100V
|
|||
|
Start Voltage
|
195V
|
|||
|
Nominal voltage
|
600V
|
|||
|
MPP voltage range
|
180-1000V
|
|||
|
No. of MPP trackers
|
10
|
|||
|
No. of PV strings per MPP tracker
|
2
|
|||
|
Max. input current per MPP tracker
|
32A
|
|||
|
Max. short-circuit current per MPP tracker
|
40A
|
|||
|
Output data (AC)
|
||||
|
AC nominal power
|
100000W
|
110000W
|
120000W
|
125000W
|
|
Max. AC apparent power
|
110000VA
|
121000VA
|
132000VA
|
137500VA
|
|
Nominal AC voltage (range*)
|
400V/380V, (340-440VAC)
|
|||
|
AC grid frequency (range*)
|
50/60 Hz (45-55Hz/55-65 Hz)
|
|||
|
Max. output current
|
158.8A @400V 167.1A@380V
|
174.6A@400V 183.8A@380V
|
190.5A @400V 200.5A@380V
|
198.5A@400V 208.9A@380V
|
|
Adjustable power factor
|
0.8leading…0.8lagging
|
|||
|
THDi
|
<3%
|
|||
|
AC grid connection type
|
3W+N+PE
|
|||
|
Efficiency
|
||||
|
Max.efficiency
|
98.8%
|
|||
|
European efficiency
|
98.4%
|
98.5%
|
||
|
MPPT efficiency
|
99.9%
|
|||
|
General data
|
||||
|
Dimensions (W / H / D)
|
970/640/345mm
|
|||
|
Weight
|
84kg
|
|||
|
Operating temperature range
|
-30 °C ... +60 °C
|
|||
|
Nighttime power consumption
|
<1W
|
|||
|
Topology
|
Transformerless
|
|||
|
Cooling
|
Smart cooling
|
|||
|
Protection degree
|
IP66
|
|||
|
Relative Humidity
|
0~100%
|
|||
|
Altitude
|
4000m
|
|||
|
DC connection
|
H4/MC4 (Max.6mm²)
|
|||
|
AC connection
|
OT Terminal (Max. 240mm²)
|
|||
|
Display
|
LED/WIFI+APP
|
|||
|
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN
|
Yes/Yes /Optional/Optional/Optional/Optional
|
|||
|
Warranty: 5 years / 10 years
|
Yes /Optional
|
|||

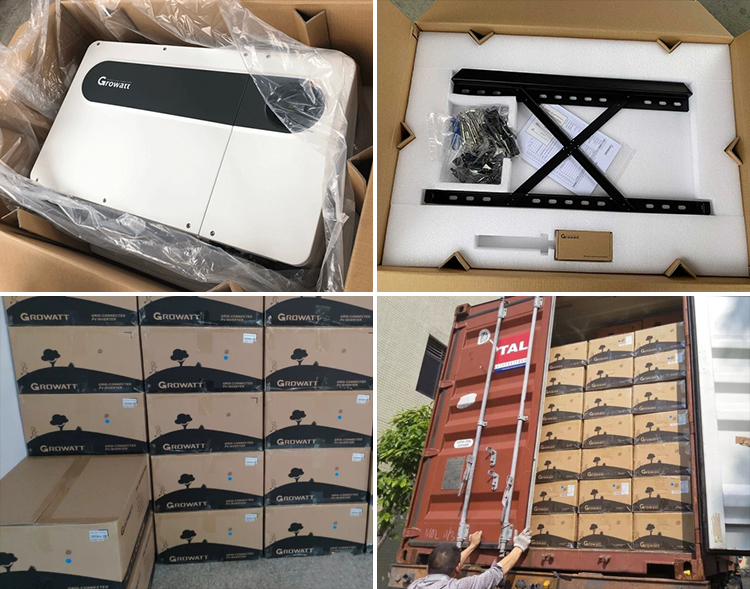

Product packaging

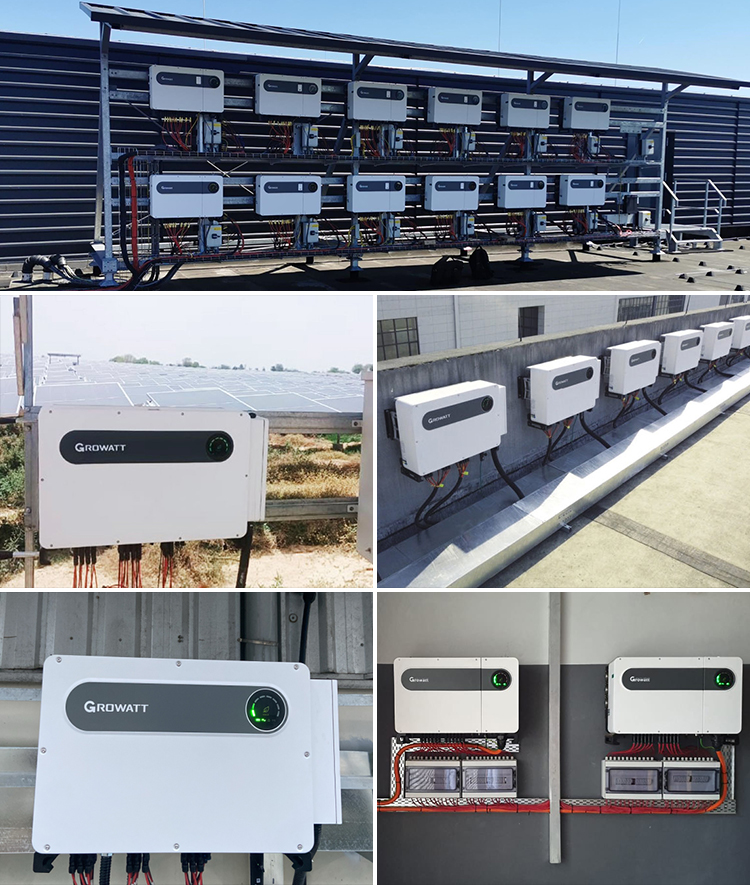

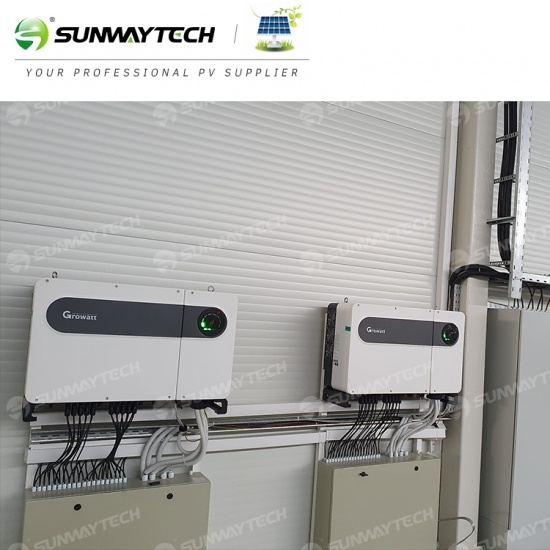

Project Case
