brand:
pvcellschainitem no.:
MID30-40KL3-X

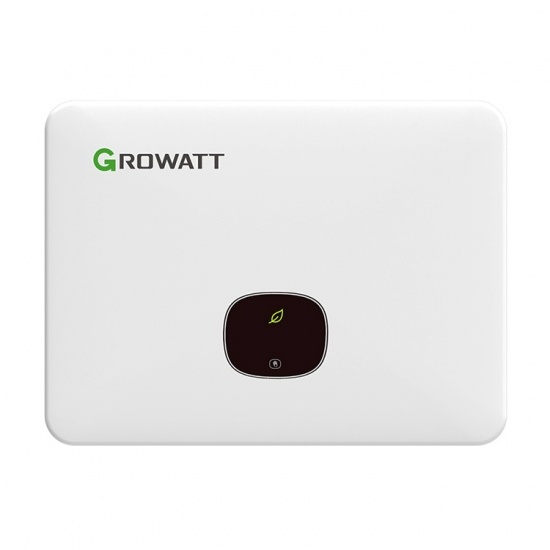

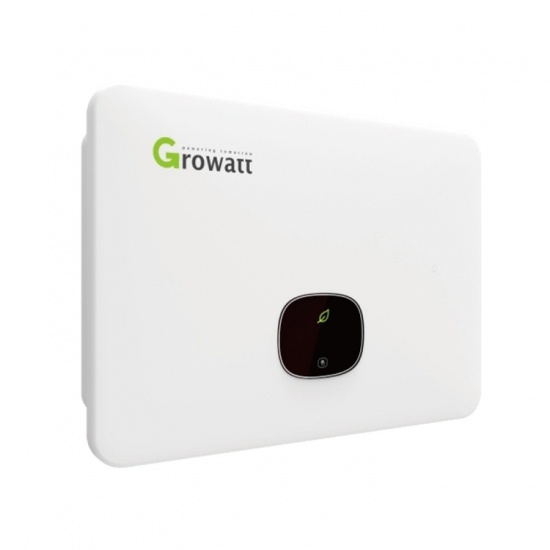

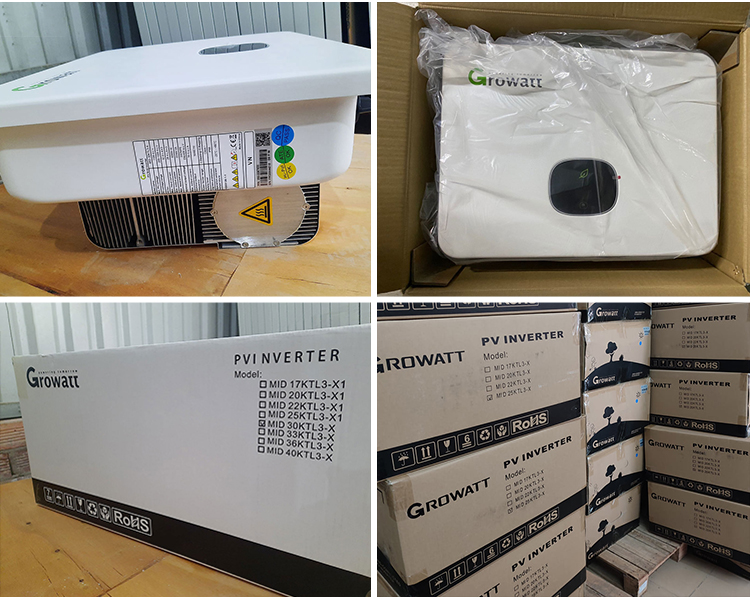

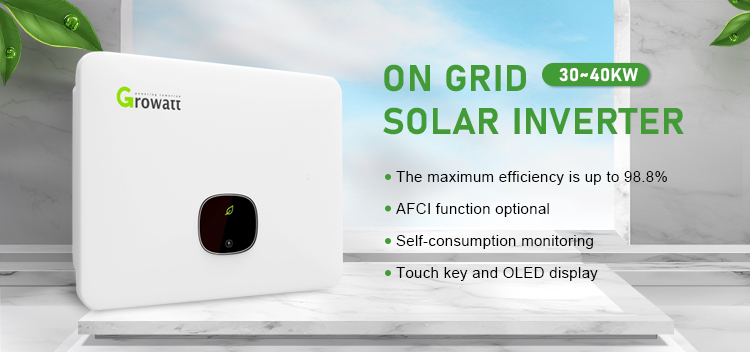

The Growatt MID generation of photovoltaic inverters is ideal for installations as it is compact and easy to install, for indoor
applications.
The inverters have a natural cooling system thus making them extremely silent compared to other inverters. There are
further fewer moving parts lowering the chance of malfunction and decreasing overall maintenance.
Specifications|
Datasheet
|
MID30KTL3-X
|
MID33KTL3-X
|
MID36KTL3-X
|
MID40KTL3-X
|
|
Input data (DC)
|
||||
|
Max. recommended PV power (for module STC)
|
45000W
|
49500W
|
54000W
|
60000W
|
|
Max. DC voltage
|
1100V
|
|||
|
Start Voltage
|
250V
|
|||
|
Nominal voltage
|
600V
|
|||
|
MPPT voltage range
|
200-1000V
|
|||
|
No. of MPP trackers
|
3
|
4
|
||
|
No. of PV strings per MPP tracker
|
2
|
|||
|
Max. input current per MPPT tracker*
|
26A
|
|||
|
Max. short circuit current per MPPT tracker
|
32A
|
|||
|
Output data (AC)
|
||||
|
AC nominal power
|
30000W
|
33000W
|
36000W
|
40000W
|
|
Max. AC apparent power
|
33300VA
|
36600VA
|
39600VA
|
44000VA
|
|
Nominal AC voltage (range*)
|
220V/380V, 230V/400V (340-440V)
|
|||
|
AC grid frequency (range*)
|
50/60 Hz (45-55Hz/55-65 Hz)
|
|||
|
Max. output current
|
50.5A
|
55.5A
|
60.0A
|
66.6A
|
|
Adjustable power factor
|
0.8leading…0.8lagging
|
|||
|
THDi
|
<3%
|
|||
|
AC grid connection type
|
3W+N+PE
|
|||
|
Efficiency
|
||||
|
Max.efficiency
|
98.8%
|
|||
|
European efficiency
|
98.5%
|
|||
|
MPPT efficiency
|
99.9%
|
|||
|
General data
|
||||
|
Dimensions (W / H / D)
|
580/435/230mm
|
|||
|
Weight
|
29.5kg
|
30.5kg
|
||
|
Operating temperature range
|
-25 °C ... +60 °C
|
|||
|
Nighttime power consumption
|
<1W
|
|||
|
Topology
|
Transformerless
|
|||
|
Cooling
|
Smart air cooling
|
|||
|
Protection degree
|
IP66
|
|||
|
Relative Humidity
|
0~100%
|
|||
|
Altitude
|
4000m
|
|||
|
DC connection
|
H4/MC4(Optional)
|
|||
|
AC connection
|
Cable gland+OT terminal
|
|||
|
Display
|
OLED+LED/WIFI+APP
|
|||
|
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN
|
Yes/Yes /Optional/Optional/Optional/Optional
|
|||
|
Warranty: 5 years / 10 years
|
Yes /Optional
|
|||
