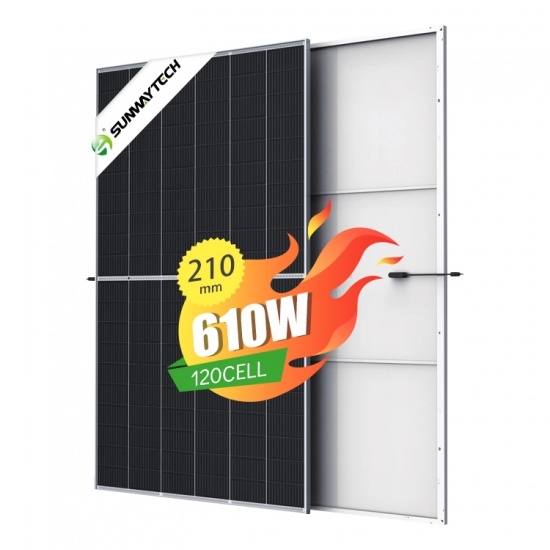

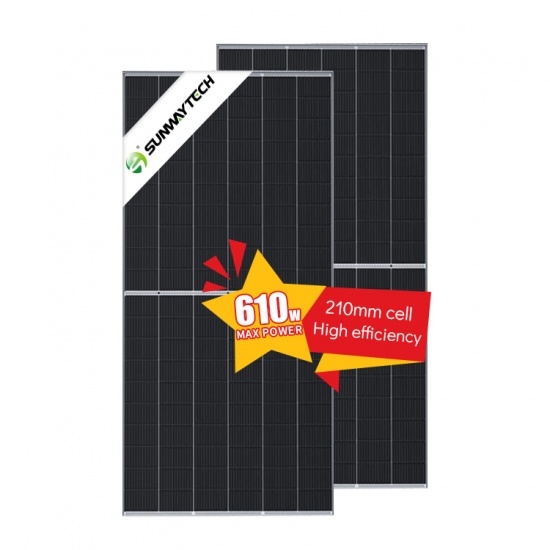

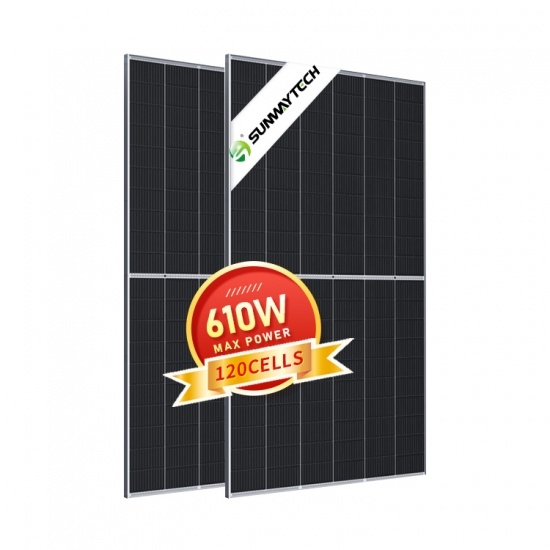

pvcellschain solar Half Cut 610W Solar Panel MBB Perc 120Cells 210mm Cell Size PV Monocrystalline Modules

pvcellschain 610W half cut solar panel is very popular, more and more customers get to know half cut solar panel than before. To save more roof space and solar energy system cost, half cut solar panel is come to being their first choice.
  • brand:

    pvcellschain
  • item no.:

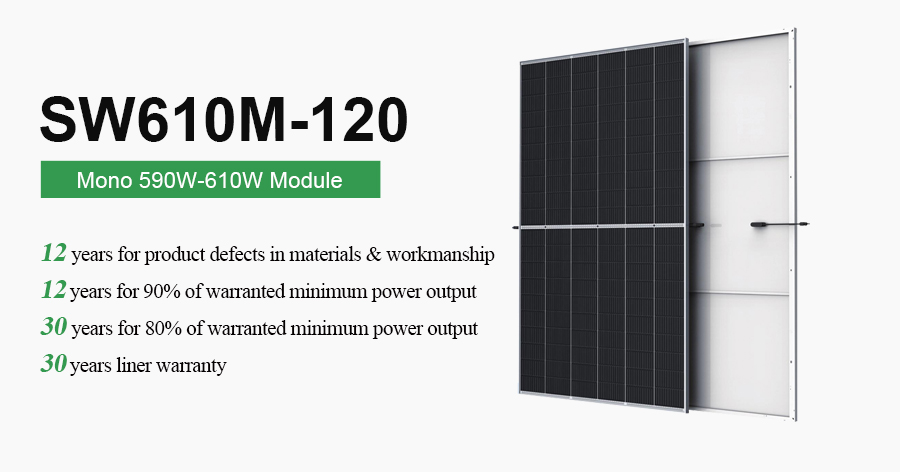

    SW610M-120
  • shipping port:

    Shanghai/Ningbo
  • Solar Cell:

    MBB 210*210mm
  • Power Range:

    590w-610w
  • Certificate:

    CE/TUV/ISO
  • Lead Time:

    15 -20Working days
  • Warranty:

    30 Years
  • product details

Half Cut 610W Solar Panel MBB Perc 120Cells 210mm Cell Size PV Monocrystalline Modules


About Half Cut 610W Solar Panel MBB Perc 120Cells 210mm Cell Size PV Monocrystalline Modules


1. By pass diode minimizes the power drop by shade

2. Unique split junction box design to minimize the loss caused by occlusion

3. Combination of series circuit and parallel circuit, reduced internal power loss

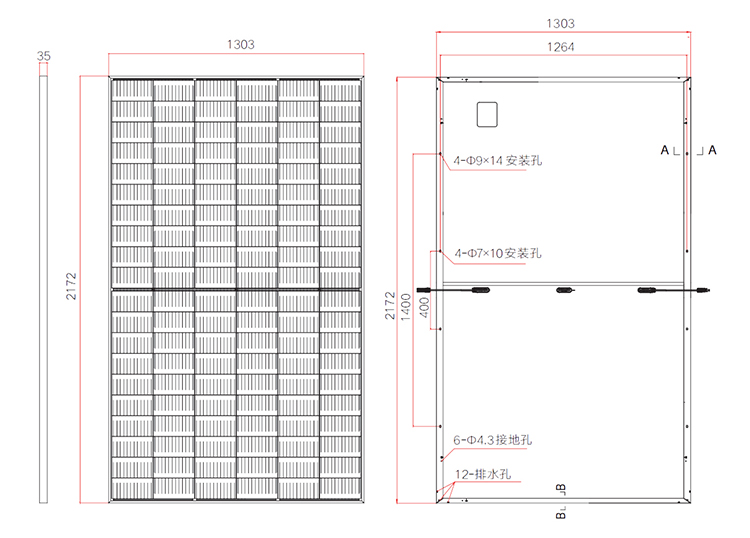

4. Solar Panel Size: 2172*1303*35mm, Solar Cell Size: 210*210mm. Technology: Perc Half Cut

5. The most rigorous test and comprehensive QC information management, ensure 3% Positive Power Tolerance

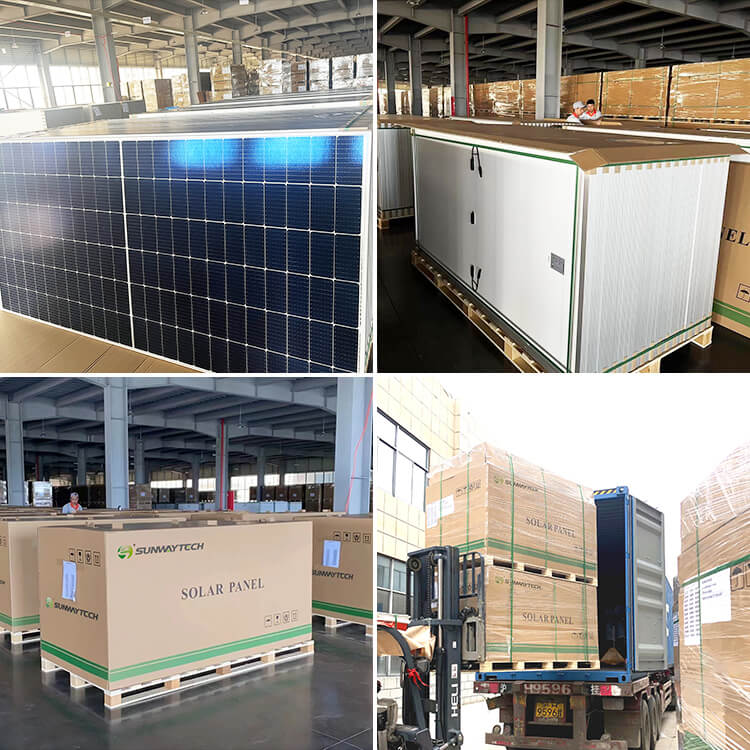

6. Professional technicians perform the fourth product quality inspection and secure and sturdy packaging

7. pvcellschain Solar panels is widely sold abroad more than 150 countries, such as Lebanon, UAE, Spain, Ukraine, Poland, South Africa, Vietnam, and so on.


Electrical Characteristics(STC) of Half Cut 610W Solar Panel MBB Perc 120Cells 210mm Cell Size PV Monocrystalline Modules

Model

SW590M-120 ~ SW610M-120

Encapsulation

Class/Eva/Cell/Eva/Backsheet

Maximum Power (Pmax)

595W

600W

605W

610W

Open-circuit Voltage (Voc)

41.30

41.50

41.70

41.90

Maximum Power Voltage (Vmp)

34.20

34.40

34.60

34.80

Short-circuit Current (Isc)

18.47

18.52

18.57

18.62

Maximum Power Current (Imp)

17.40

17.44

17.49

17.54

Module Efficiency (%)

21.00

21.20

21.40

21.60

Power Tolerance

0~+5W

Temperature Coeffcient of Isc

0.043%/ºC

Temperature Coeffcient of Voc

-0.260%/ºC

Temperature Coeffcient of Pmax

-0.360%/ºC
