Front Terminal GEL Storage Battery 12V 150Ah Lead Acid Battery

  • product origin:

    China
  • brand:

    pvcellschain
  • item no.:

    SW-12V 150AH-GEL/AGM
  • shipping port:

    Shanghai/Ningbo/Guangzhou
  • color:

    Optional
  • lead time:

    1week
  • payment:

    T/T,Alibaba Trade Assurance,Western Union, Cr
  • Sealed Type:

    Sealed
  • Voltage:

    12V
  • capacity:

    150AH
  • Certificate:

    CE/MSDS
  • Warranty:

    5Years
  • Battery type:

    Lead Acid / AGM Battery
  • Usage:

    Home Appliances, Electric Bicycles/Scooters, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
  • product details

Front Terminal GEL Storage Battery 12V 150AH Lead Acid Battery


Products  Specification

Model
6-GFM-150Ah
6-GFM(G)-150Ah
Cells Per Unit
6
Voltage Per Unit
12
Capacity
150Ah@10hr-rate to 1.80V per cell @25°C
Weight
43kg
47kg
Internal Resistance
Approx. 3.5 mΩ
Approx. 4 mΩ
Terminal
F8
Max.Discharge Current
2250A (5 sec)
Design Life
6~8 years
10~15 years
Maximum Charging Current
37.5A
Reference Capacity
C10 150.0AH
C3 115.0AH
C1 82.8AH
C10 150.0AH
C3 108.7AH
C1 82.4AH
Float Charging Voltage
13.6 V~13.8 V @ 25°C
Temperature Compensation: -20mV/°C/Cell
Cycle Use Voltage
14.4 V~14.9 V @ 25°C
Temperature Compensation: -30mV/°C/Cell
Operating Temperature Range
Discharge: -15°C~50°C
Charge: 0°C~40°C
Storage: -15°C~40°C
Discharge: -20°C~60°C
Charge: 0°C~50°C
Storage: -20°C~60°C
Normal Operating Temperature Range
25°C±5°C
Self Discharge
Less than 3% at 25°C per month
Container Material
A.B.S. UL94-HB, UL94-V0 Optional

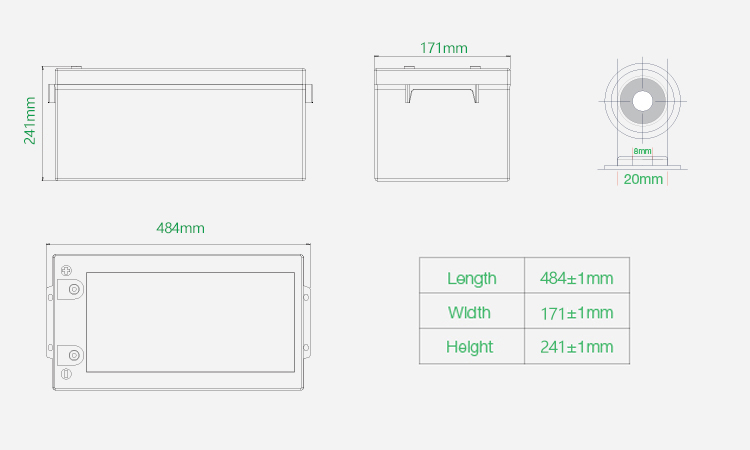

Detailed Images
