Gel Battery 12V 100Ah Agm Solar Lead Acid Battery Price

  • product origin:

    China
  • brand:

    pvcellschain
  • item no.:

    SW-12V 100AH-GEL/AGM
  • shipping port:

    Shanghai/Ningbo/Guangzhou
  • color:

    Optional
  • lead time:

    1week
  • payment:

    T/T,Alibaba Trade Assurance,Western Union, Cr
  • Sealed Type:

    Sealed
  • Voltage:

    12V
  • capacity:

    100AH
  • Certificate:

    CE/MSDS
  • Warranty:

    5Years
  • Battery type:

    Lead Acid / AGM Battery
  • Usage:

    Home Appliances, Electric Bicycles/Scooters, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
  • product details

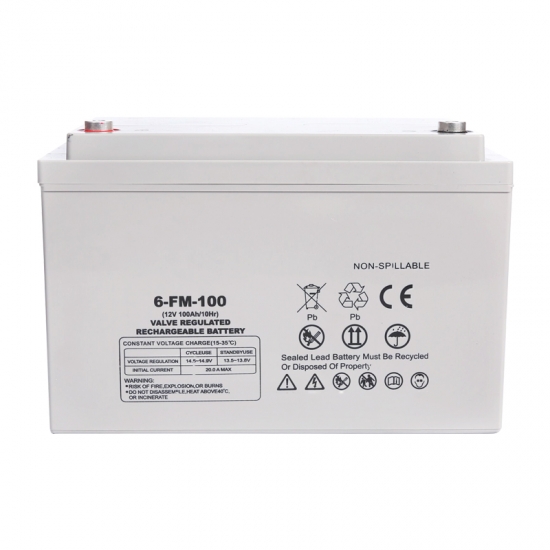

Gel Battery 12V 100Ah Agm Solar Lead Acid Battery Price




Products  Specification

Model
6-GFM-100Ah
6-GFM(G)-100Ah
Cells Per Unit
6
Voltage Per Unit
12
Capacity
100Ah@10hr-rate to 1.80V per cell @25°C
Weight
28.3kg
30.8kg
Internal Resistance
Approx. 4.5 mΩ
Approx. 6 mΩ
Terminal
F8
Max.Discharge Current
1500A (5 sec)
Design Life
6~8 years
10~15 years
Maximum Charging Current
25A
Reference Capacity
C10 100.0AH
C3 76.8AH
C1 55.2AH
C10 100.0AH
C3 74.6AH
C1 56.8AH
Float Charging Voltage
13.6 V~13.8 V @ 25°C
Temperature Compensation: -20mV/°C/Cell
Cycle Use Voltage
14.4 V~14.9 V @ 25°C
Temperature Compensation: -30mV/°C/Cell
Operating Temperature Range
Discharge: -15°C~50°C
Charge: 0°C~40°C
Storage: -15°C~40°C
Discharge: -20°C~60°C
Charge: 0°C~50°C
Storage: -20°C~60°C
Normal Operating Temperature Range
25°C±5°C
Self Discharge
Less than 3% at 25°C per month
Container Material
A.B.S. UL94-HB, UL94-V0 Optional

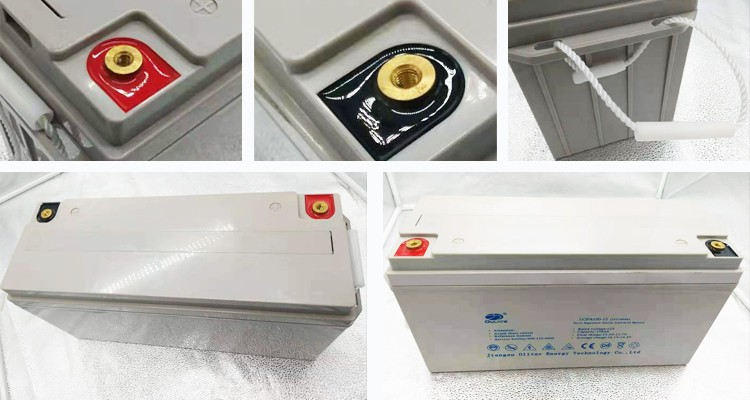

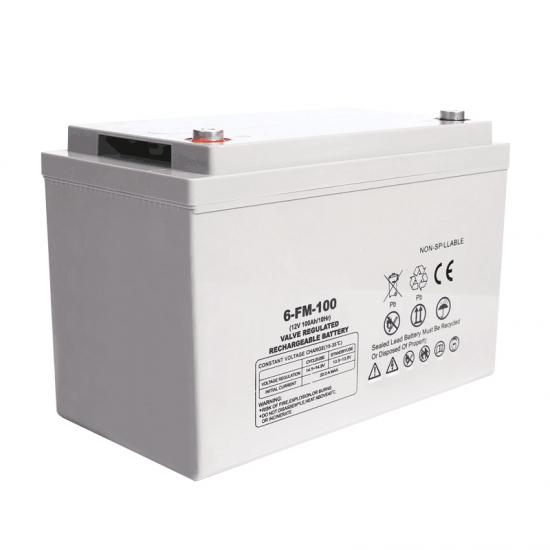

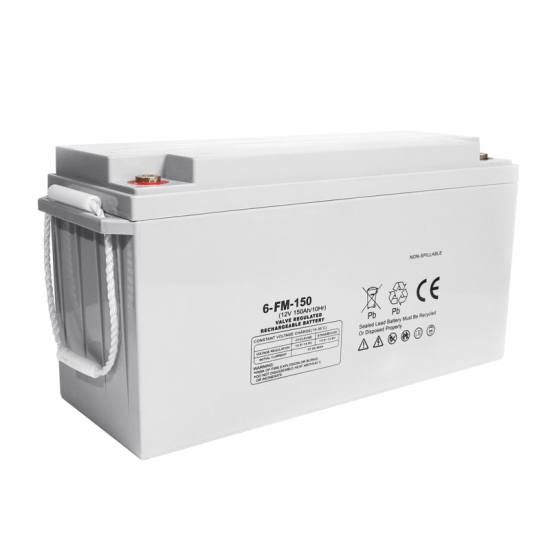

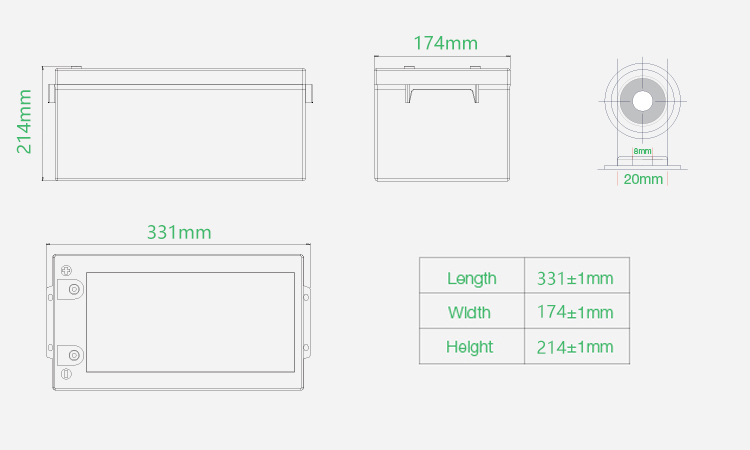

Detailed Images

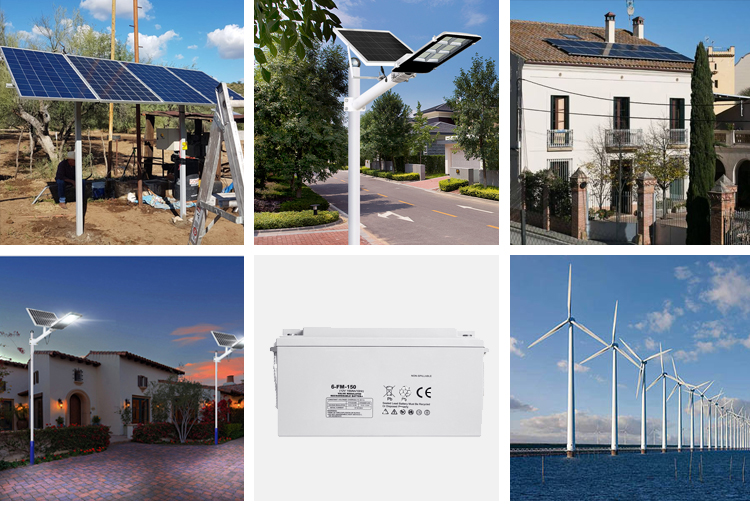

Products Projects











SEND A MESSAGE

You can contact us any way that is convenient for you. We are available 24/7 via fax, email or telephone.
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

related products

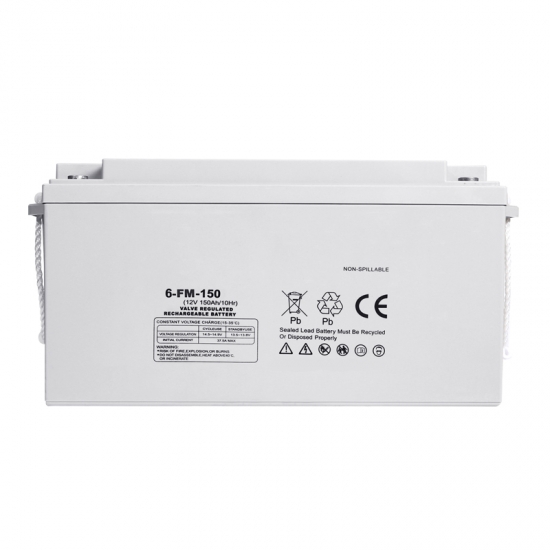

 Lead Acid Battery

Front Terminal GEL Storage Battery 12V 150AH Lead Acid Battery Products  Specification Model 6-GFM-150Ah 6-GFM(G)-150Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 150Ah@10hr-rate to 1.80V per cell @25°C Weight 43kg 47kg Internal Resistance Approx. 3.5 mΩ Approx. 4 mΩ Terminal F8 Max.Discharge Current 2250A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 37.5A Reference Capacity C10 150.0AH  C3 115.0AH C1 82.8AH C10 150.0AH  C3 108.7AH C1 82.4AH Float Charging Voltage 13.6 V~13.8 V @ 25°C  Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C  Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C  Charge: 0°C~40°C  Storage: -15°C~40°C Discharge: -20°C~60°C  Charge: 0°C~50°C  Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images

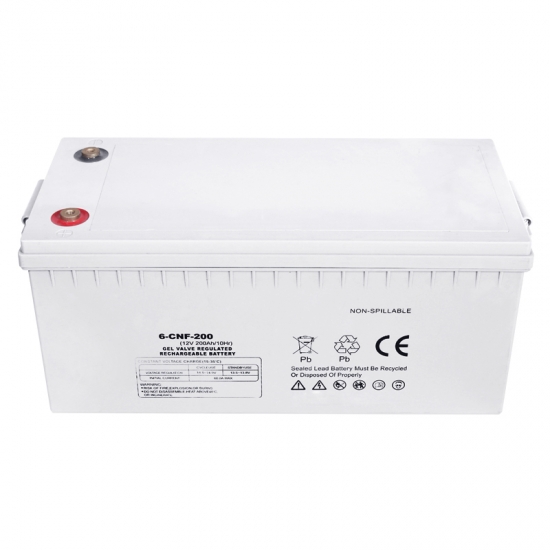

 Lead Acid Battery

Deep Cycle 12V 200Ah GEL Solar Battery AGM Storage Battery Products  Specification Model 6-GFM-200Ah 6-GFM(G)-200Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 200Ah@10hr-rate to 1.80V per cell @25°C Weight 57.9kg 62.4kg Internal Resistance Approx. 3 mΩ Approx. 3.5 mΩ Terminal F8 Max.Discharge Current 3000A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 50A Reference Capacity C10 200.0AH  C3 153.3AH C1 110.4AH C10 200.0AH  C3 144.7AH C1 110.1AH Float Charging Voltage 13.6 V~13.8 V @ 25°C  Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C  Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C  Charge: 0°C~40°C  Storage: -15°C~40°C Discharge: -20°C~60°C  Charge: 0°C~50°C  Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images Products Projects

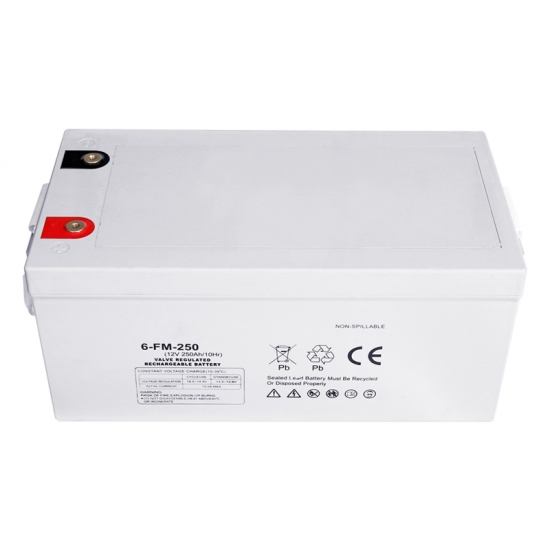

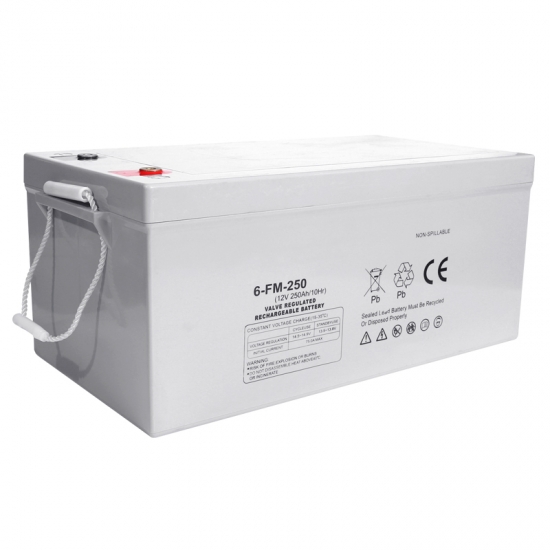

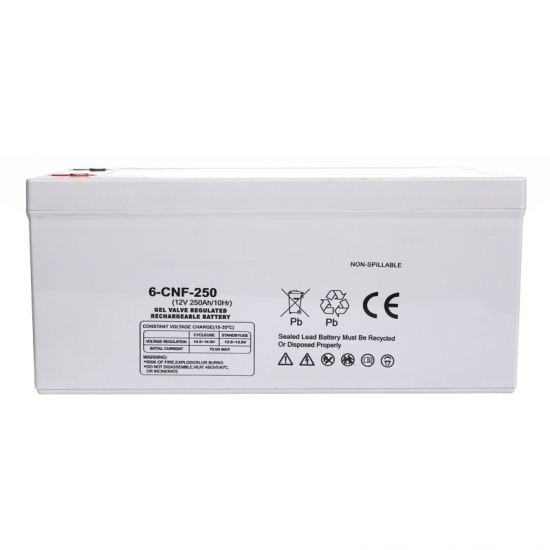

 Lead Acid Battery
