product origin:
Anhuibrand:
pvcellschainitem no.:
SW515M-150shipping port:
Shanghai/Ningbocolor:
Black and Whitelead time:
15-20 Working dayspayment:
T/T, L/C, Paypal, Western UnionSolar Cell:
10BBNumber Of Cells:
150 CellsPower Range:
495~515WCertificate:
CE/TUV/ISOLead Time:
15 Working DaysPayment:
TT, L/C, Western Union, Credit Card, EtcWarranty:
25 YearsProduct Name: Roof 495W 150 Cell Nominal Solar Panel Price 500 Watt 500W Monocrystalline For Sale

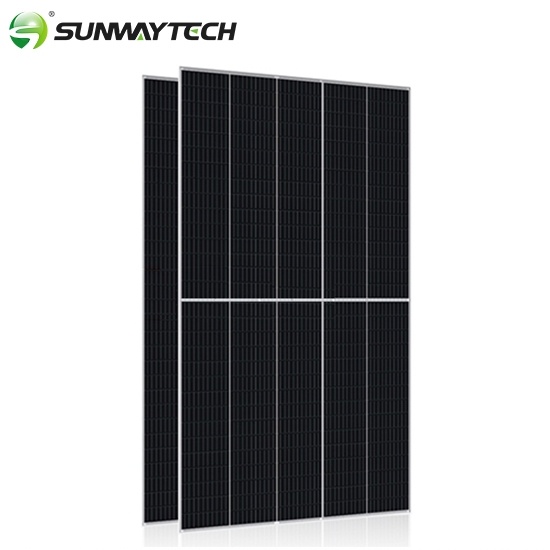

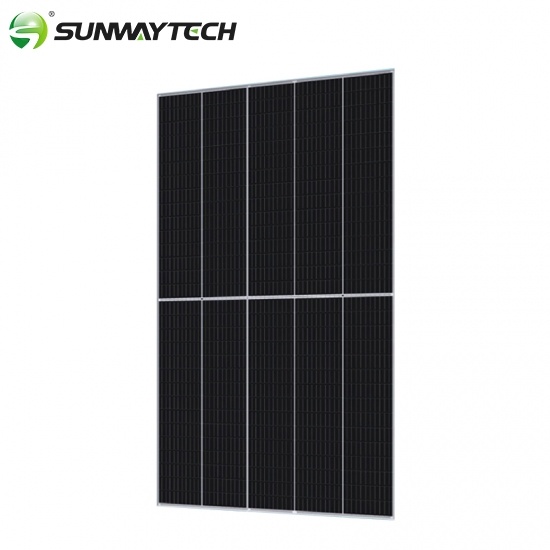

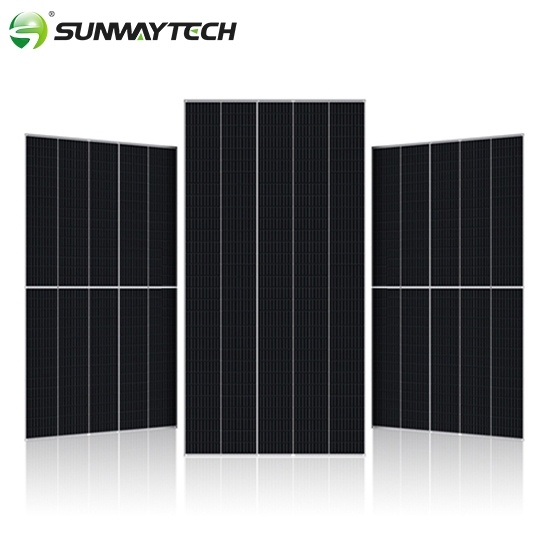

About Roof 495W 150 Cell Nominal Solar Panel Price 500 Watt 500W Monocrystalline For Sale

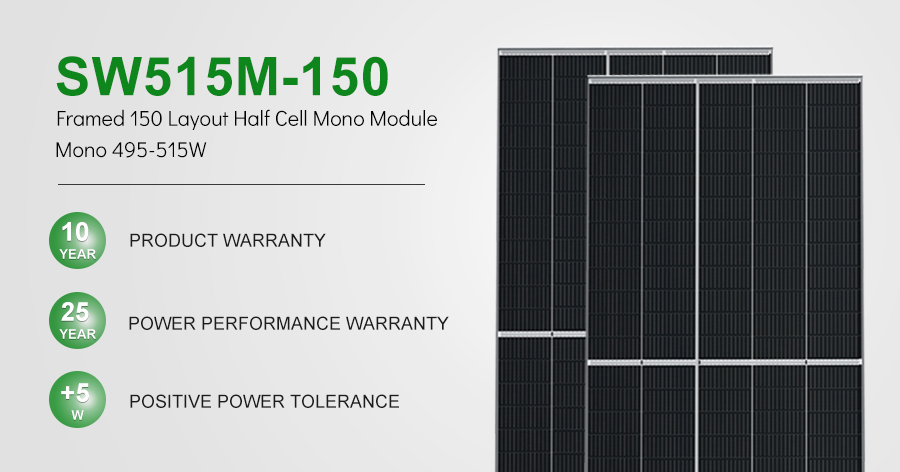

1. SW495M-150~SW515M-150 is pvcellschain Half Cut 150Cells Mono Perc 495W to 515W Solar Panel
2. High efficiency solar cells based on half cut perc technology
3. Strong aluminum frame manufactured to withstand a heavier snow load and high wind pressures, passing a snow load of 5400Pa
4. 25 Years (or 30 Years Optional) Power Performance Warranty and 10 Years Product warranty
|
Electrical Parameters of Roof 495W 150 Cell Nominal Solar Panel Price 500 Watt 500W Monocrystalline |
|||||
|
Module |
SW495M-150 ~ SW515M-150 |
||||
|
Encapsulation |
Class/Eva/Cell/Eva/Backsheet |
||||
|
Maximum Power Pmax (W) |
495 |
500 |
505 |
510 |
515 |
|
Maximum Power Voltage (Vmp/V) |
42.70 |
42.90 |
43.10 |
43.30 |
43.50 |
|
Maximum Power Current (Imp/A) |
11.60 |
11.66 |
11.72 |
11.78 |
11.84 |
|
Open Circuit Voltage (Voc/V) |
51.40 |
51.60 |
51.80 |
52.00 |
52.20 |
|
Short Circuit Current (Isc/A) |
12.24 |
12.31 |
12.38 |
12.45 |
12.52 |
|
Cell Efficiency(%) |
22.45 |
22.68 |
22.90 |
23.13 |
23.36 |
|
Module Efficiency (%) |
20.33 |
20.53 |
20.74 |
20.94 |
21.15 |
|
Power Tolerance (W) |
0 ~ +5W |
||||
|
Temperature Coefficient of Isc (αIsc) |
|
||||
|
Temperature Coefficient of Voc (βVoc) |
-0.26%/℃ |
||||
|
Temperature Coefficient of Pmax (γPmp) |
-0.36%/℃ |
||||
|
STC |
Irradiance 1000W/㎡, Cell Temperature 25℃ , Spectrum AM 1.5 |
||||
410W/500W Shingled Solar Panel Overlapping solar module has 25 years warranty time. Applied for hotel, office,and factory.
