product origin:
Anhuibrand:
pvcellschainitem no.:
Ground ECO2600-Lshipping port:
Shanghai Port or Any other Port in Chinalead time:
20-40payment:
EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,Voltage:
48v,51.2vcapacity:
55Ah/110Ah/165Ah/220Ah/Battery type:
LifePo4 Battery Modular

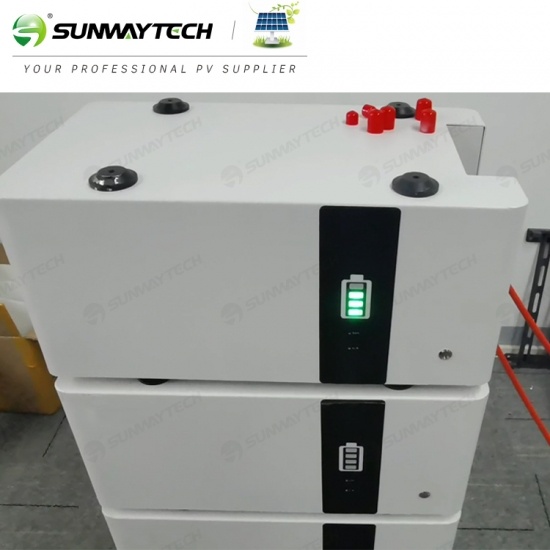

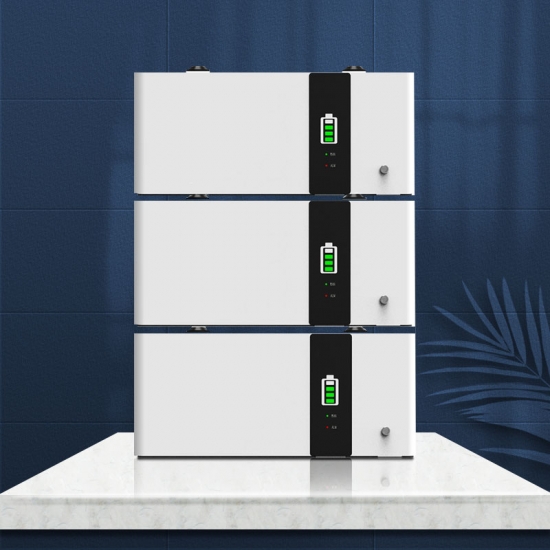

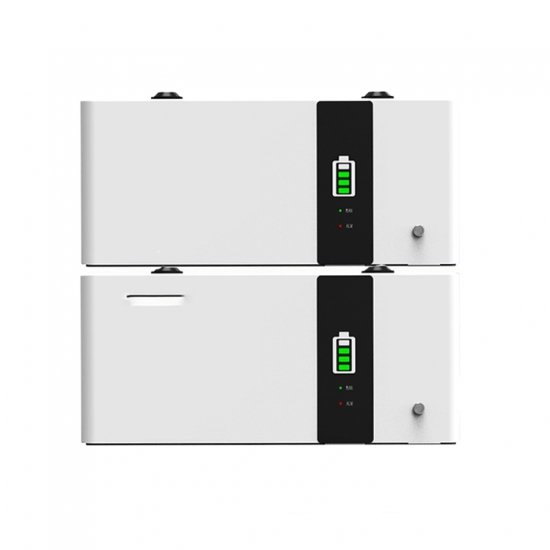

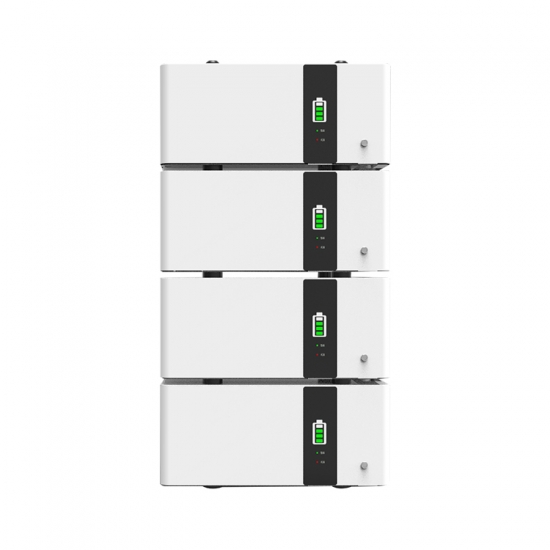

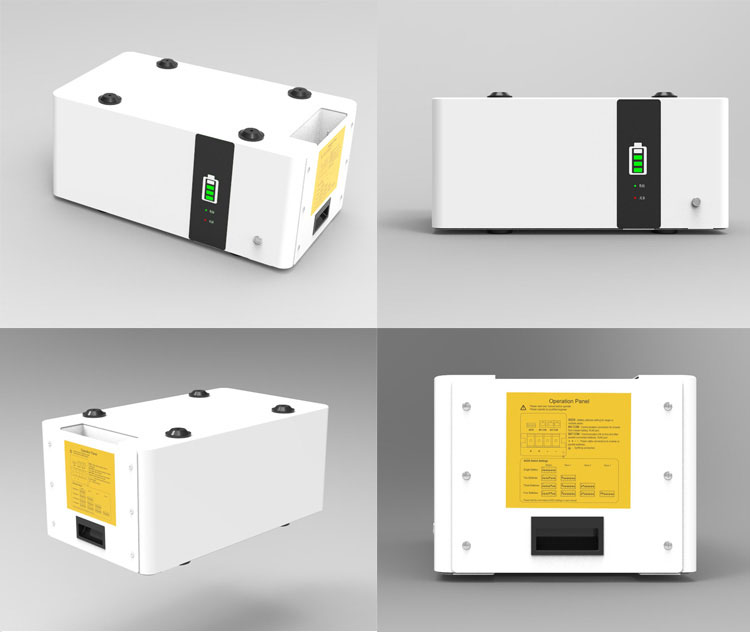

Features of pvcellschain Ground Eco Lithium Solar Battery
8. Maximum 1C charge and discharge capability
9. Scalable up to maximum 15 packs

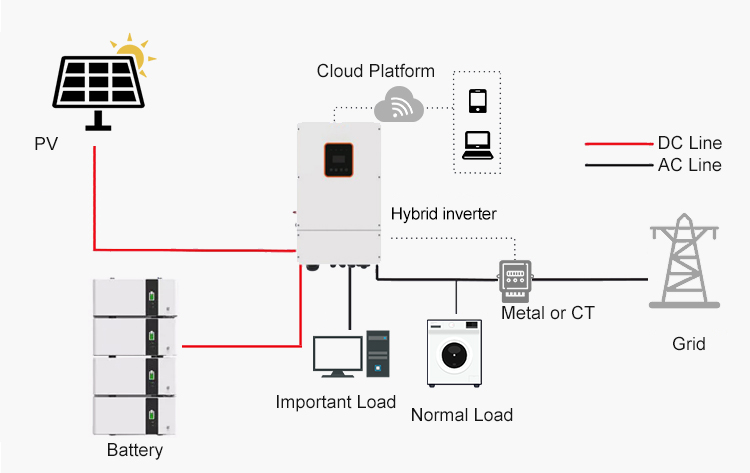

Residential Solar & Storage Solution
Hybrid Inverter + Lithium ion Battery
(3.6KW/5KW Hybrid Inverter+7.6kWh Stacked Lithium LifePo4 Battery)
pvcellschain Ground Eco lithium battery is mainly for home energy stoarge solutions. The BMS has been compatible with most famous inverter brands in market, such as Growatt, Goodwe, Megarevo, Luxpower, Deye hybrid inverters.
Product Paramenters
|
SPECIFICATIONS
|
||
|
Model
|
Gound Eco-2800
|
Gound Eco-10K
|
|
Capacity Energy
|
2.8kWh
|
11.2kWh
|
|
Capacity Ah
|
55Ah
|
220Ah
|
|
Suggested SOC
|
10-100%
|
|
|
Usable Capacity
|
2.6kWh
|
10.4kWh
|
|
Normal Voltage
|
51.2V
|
|
|
Operation Voltage
|
44.8V 〜57.6V
|
|
|
Maximum Charqinq
/Discharging Current
|
35A/50A
|
100A/100A per stack
|
|
Life Cycling(0.5C 25°C)
|
6000 Cycles@0.5C
|
|
|
BMS
|
Parrallel function,single cell voltage and temperature
measurement,protections,display optional,heating function optional
|
|
|
Communication
|
CAN,RS485
|
|
|
Scalable
|
Yes, maximum 15 packs
|
|
|
Design Lifespan
|
More than 10 years
|
|
|
Operation Temperature
|
-20°C 〜45°C
|
|
|
Weight
|
30kg
|
120kg
|
|
Dimensions
|
480*280*210mm
|
480*280*900mm
|
|
Certifications
|
MSDS,UN38.3,RoHS,IEC62619JUL,CE
|
|
|
IP Grade
|
IP54
|
|

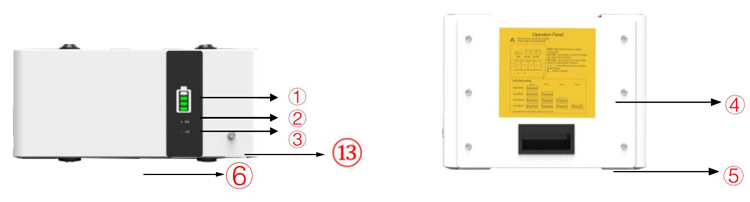

1. SOC Indicator 2. Working Indicator
3. Alarm Indicator
4. Removable plate
5. Cables Inlets
6. Mounted seats

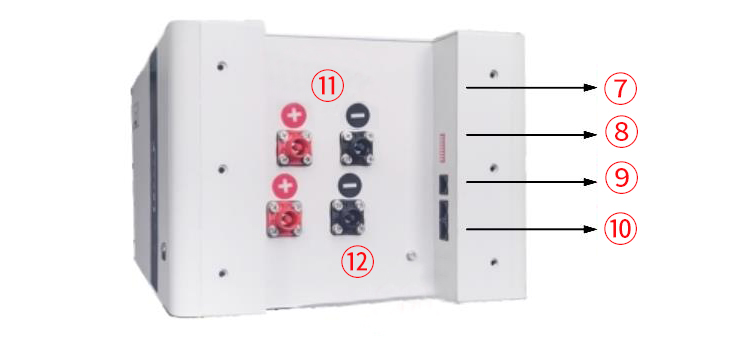

7. Operation Area
8. ADDS Switch
9. Inverter Communication Port
Product packaging

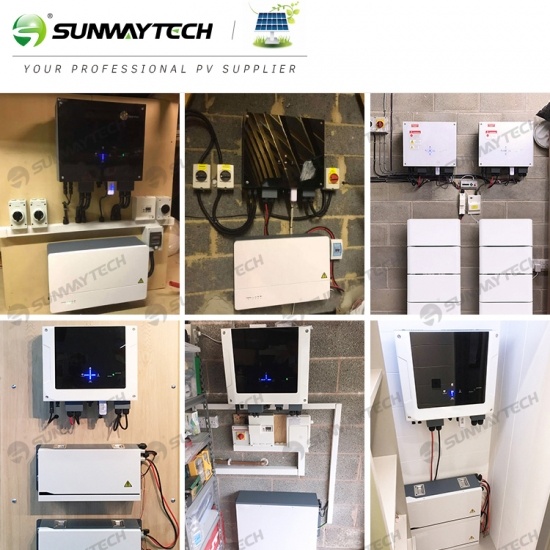

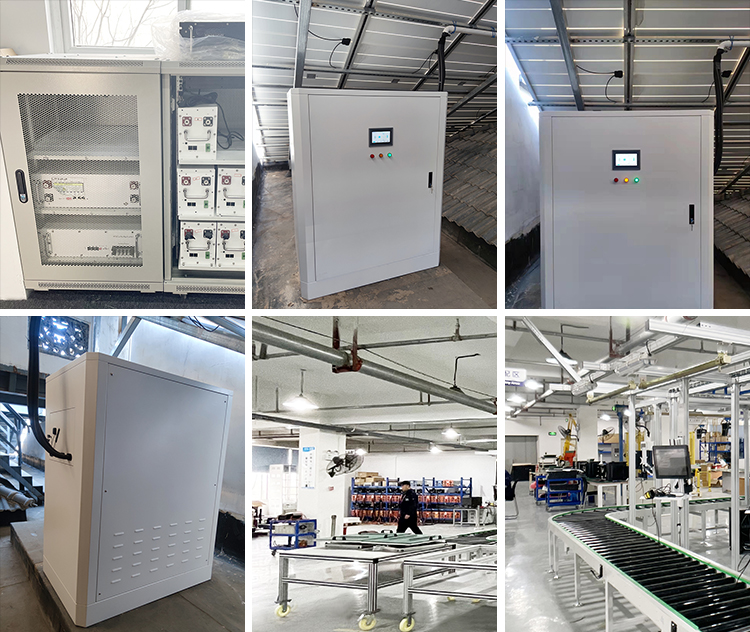

Project Case
Energy Solar System : Microgrid mainly has solar power system(Inverter, Solar panels), Energy storage system( AGM, GEL or lithium battery), can be also connect with generator
