read morebrand:
pvcellschainitem no.:
SPF 4000-12000T DVMcolor:
WhitePower:
10kwVoltage:
110V/120V/220V/230V/240VPayment:
T/T, L/C, Alipay, Paypal, Western UnionWarranty:
5 years

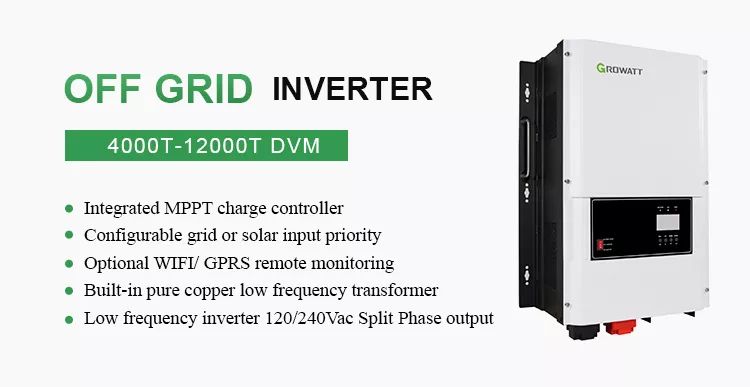

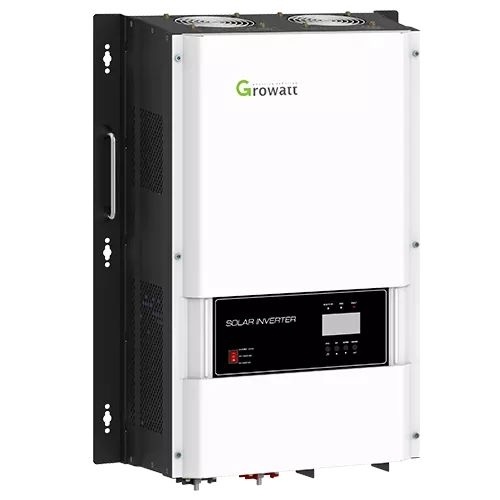

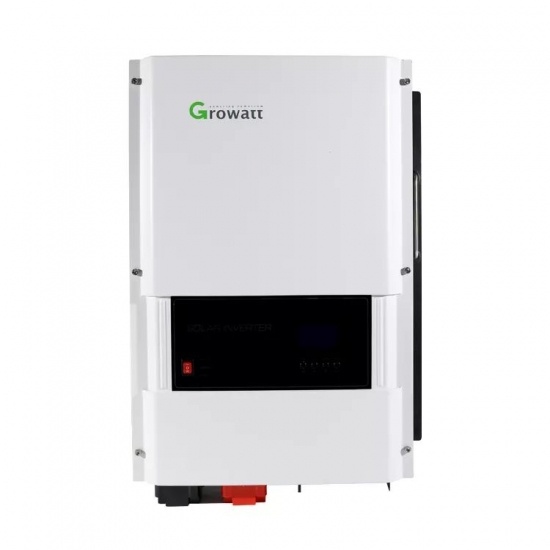

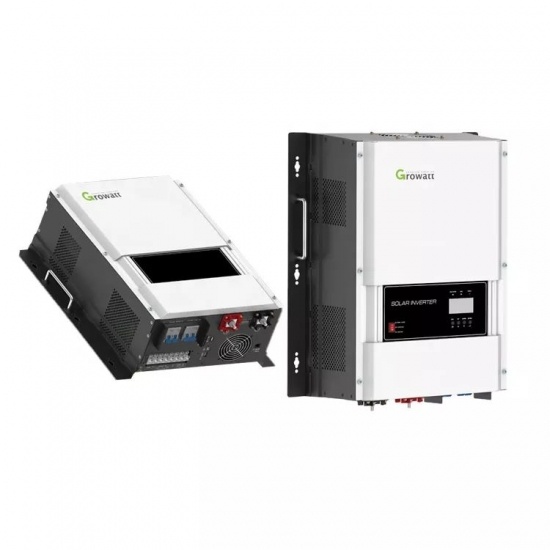

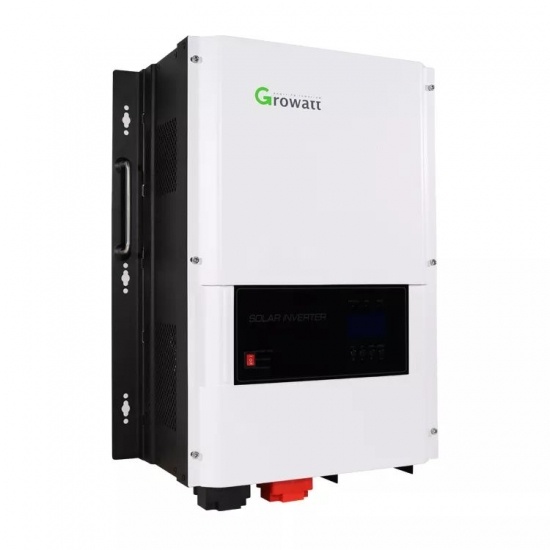

This is a multifunctional split-phase output off grid solar inverter, integrated with a MPPT solar charge controller, a low
frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power
and self-consumption applications.
Datasheet
|
SPF 4000T DVM
|
SPF 5000T DVM
|
SPF 6000T DVM
|
SPF 8000T DVM
|
SPF 10000T DVM
|
SPF 12000T DVM
|
Battery Voltage
|
48DVC
|
|||||
Battery Type
|
Lithium/Lead-acid
|
|||||
INVERTER OUTPUT
|
||||||
Rated Power
|
4KW
|
5KW
|
6KW
|
8KW
|
10KW
|
12KW
|
Surge Rating
|
12KW
|
15KW
|
18KW
|
24KW
|
30KW
|
36KW
|
Waveform
|
Pure sine wave/same as input(bypass mode)
|
|||||
Nominal Output Voltage RMS
|
104-110-115-120/208-220-230-240VAC(optional)
|
|||||
Output Frequency
|
50Hz/60Hz+/-0.3Hz
|
|||||
Inverter Efficiency(Peak)
|
>85%
|
|||||
Transfer Time
|
10ms(max)
|
|||||
SOLAR CHARGER
|
||||||
Maximum PV Charge Current
|
80A
|
120A
|
||||
Maximum PV Array Power
|
5000W
|
7000W
|
||||
Number of independent MPP trackers/string per MPP tracker
|
1/1
|
2/1
|
||||
MPPT Range@Operating Voltage(VDC)
|
60~145VDC
|
60~145VDC
|
||||
Maximum PV Array Open Circuit Voltage
|
150VDC
|
150VDC
|
||||
Maximum Efficiency
|
>98%
|
>98%
|
||||
AC INPUT
|
||||||
Voltage
|
240VAC
|
|||||
Selectable Voltage Range
|
184~272VAC(UPS);154~272VAC(APL)
|
|||||
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|||||
Max.Charging Current
|
40A
|
50A
|
60A
|
70A
|
80A
|
100A
|
