SUNWAY 51.2V 10kWh 20kWh 30kWh 40kWh 18650 lithium battery

The lithium iron phosphate rechargeable battery system features wall mounting, IP62 protection for outdoor use, over 6000 charge cycles or 10-year lifespan, and compatibility with popular off-grid inverters through standard CAN and RS485 communication protocols.
  • brand:

    pvcellschain
  • item no.:

    SW51B200TW3
  • Voltage:

    51.2V
  • capacity:

    10.85kwh
  • Cycle Life:

    6000 cycles
  • Certificate:

    MSDS,UN38.3,CE,IEC
  • product details

>>MAIN FEATURES

*Reduce floor space,wall-mounted installation.Wall mounted or floor mounted can be freely selected
*·LFP rechargable battery A+ Grade cell
*Good compatbility.standard communication protocal CAN and RS485,-compatible with most popular hybrid and off grid inverters in the market
*IP65 protection class,suit for outdoor installation

*Extramly long life cycle,more than 6000 times or 10 years
*High protection measures,built-in Aerosol active fire protection module,therma runaway detecton and active fire protection

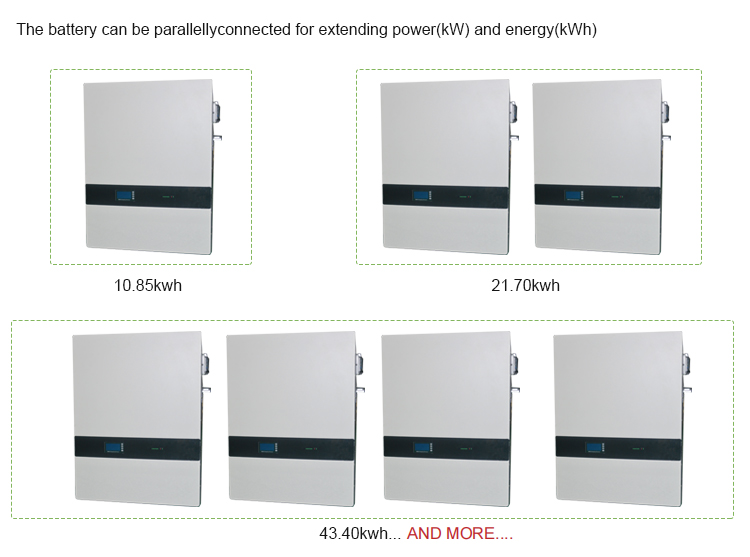

*Good extendibility,10kWh each,easy extend to 10kwh/20kWh/30kwh/40kWh etc



Models
SW51B200TW3
Nominal Capacity
212Ah
Nominal Voltage
51.2V
Shell Material
Metal case
Packaging Materials
Bubble wrap & carton
Weight
≤90kg
Rated charge current
≤100A
Limited Charge Voltage
58.4V( 16*3.65V)
Charge Mode
CC-CV
Rated discharge current
≤140A
Discharge Top- limited Voltage
40V( 16*2 .5V)
IP Rating
IP62
Charge
0-45°C
Discharge
-20-60°C
Temperature
-20-45°C
Humidity
60+25% R.H

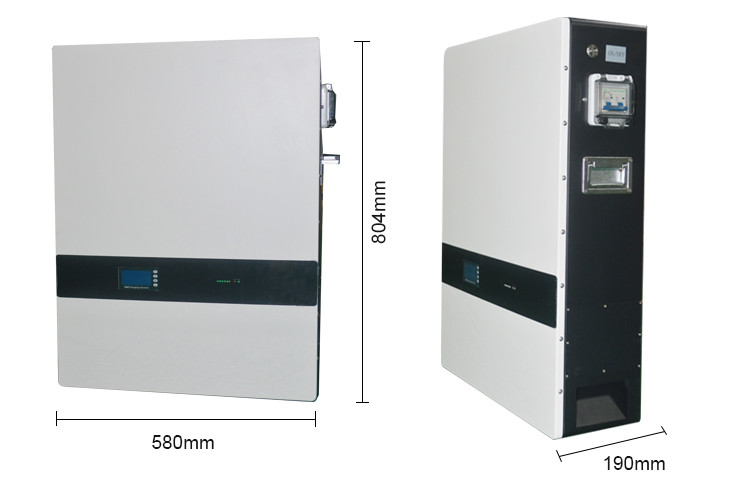

Thickness
190±2mm
Width
580±2mm
Lengtht
804±2mm
