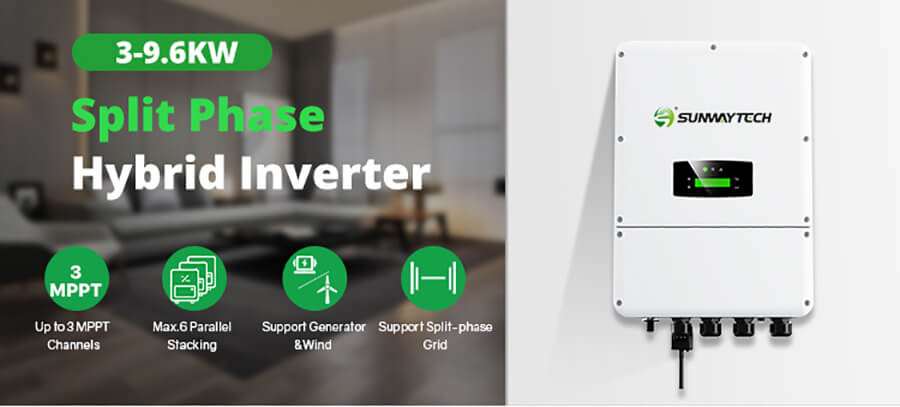

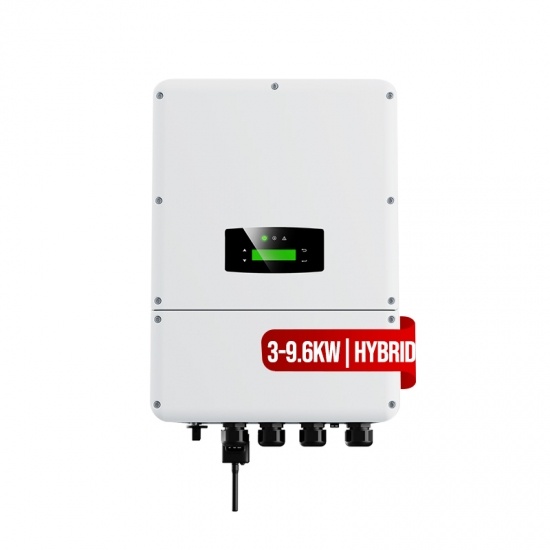

brand:
pvcellschainitem no.:
AF5K-DHPower:
3-9.6KWCertificate:
CEWarranty:
5 years/10 years
The AF Series storage inveters meet the U5 safety regulations, integrated with Arc Fault Circuit interrupter (AFCI) and Rapid Shutdown.

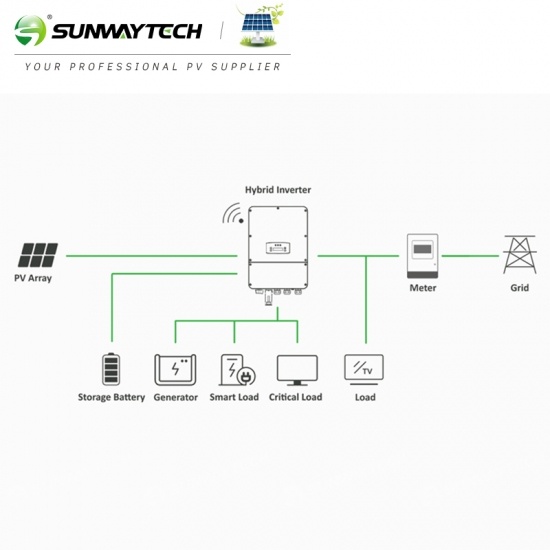

System Architecture
Product Parameter
|
PV Input
|
AF3K-DH
|
AF3.6K-DH
|
AF4K-DH
|
AF4.6K-DH
|
AF5K-DH
|
AF5.5K-DH
|
|
Max. Input Power(kW)
|
4.5
|
5.4
|
6.0
|
6.9
|
7.5
|
8.3
|
|
Max. PV Votage (V)
|
600
|
|||||
|
MPPT Range (V)
|
80-550
|
|||||
|
Normal Voltage (V)
|
360
|
|||||
|
Startup Voltage (V)
|
100
|
|||||
|
Dimensions(HxWxD)
|
560× 400× 229 mm / 22.0x 15.7×9.0 in
|
|||||
|
Weight
|
25 kgs/55 lbs
|
|||||
|
Topology
|
Tranformerless
|
|||||
|
Cooling
|
Natural Convection
|
|||||
|
Relatively Humidity
|
0-100%
|
|||||
|
Operating Temperature Range
|
-25 to 60*℃ /-77 to 140*F
|
|||||
|
Operating Altitude
|
<4000 m/< 13123 ft
|
|||||
|
Noise Emission (dB)
|
<25
|
|||||
|
Standby Consumption (W)
|
<10
|
|||||
|
Mounting
|
Wall Bracket
|
|||||
|
Communication with RSD
|
SUNSPEC
|
|||||
|
Display &
Communication Intertaces
|
LCD, LED, RS485, CAN, Wi-Fi, 4G
|
|||||
|
PV Input
|
AF6K-DH
|
AF7K-DH
|
AF7.6K-DH
|
AF8K-DH
|
AF8.6K-DH
|
AF9.6K-DH
|
|
Max. Input Power (kw)
|
9.0
|
10.5
|
11.4
|
12.0
|
12.9
|
15.0
|
|
Max. PV Voltage (V)
|
600
|
|||||
|
MPPT Range(V)
|
80-550
|
|||||
|
Normal Voltage (V)
|
360
|
|||||
|
Startup Voltage (V)
|
100
|
|||||
|
Dimensions(H xWx D)
|
560×400× 229 mm/22.0x15.7x9.0 in
|
|||||
|
Weight
|
25 kgs/55 lbs
|
|||||
|
Topology
|
Tranformerless
|
|||||
|
Cooling
|
Intelligent Fan
|
|||||
|
Relatively Humidity
|
0-100% -25 to 60*℃ /-77 to 140*F
|
|||||
|
Operating Temperature Range Operating Altitude
|
<4000 m/< 13123 ft
|
|||||
|
Noise Emission (dB) <25
|
<40
|
|||||
|
Standby Consumption (W)
|
<10
|
|||||
|
Mounting
|
Wall Bracket
|
|||||
|
Communication with RSD
|
SUNSPEC
|
|||||
|
Display & Communication Interfaces Certifcation & Approvals
|
LCD, LED, RS485,CAN,Wi-Fi, 4G
|
|||||

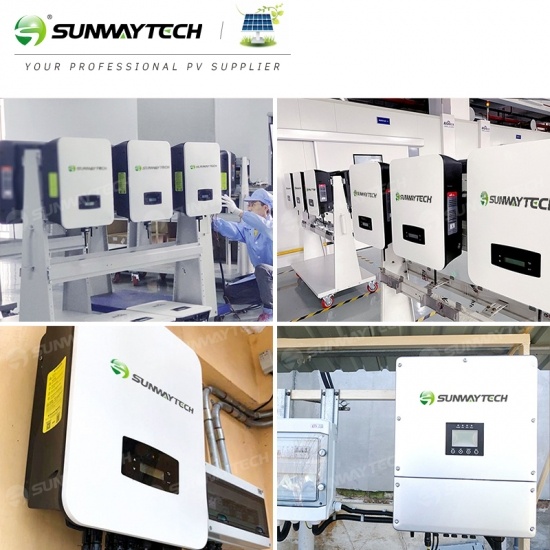

Project Case
Certifications

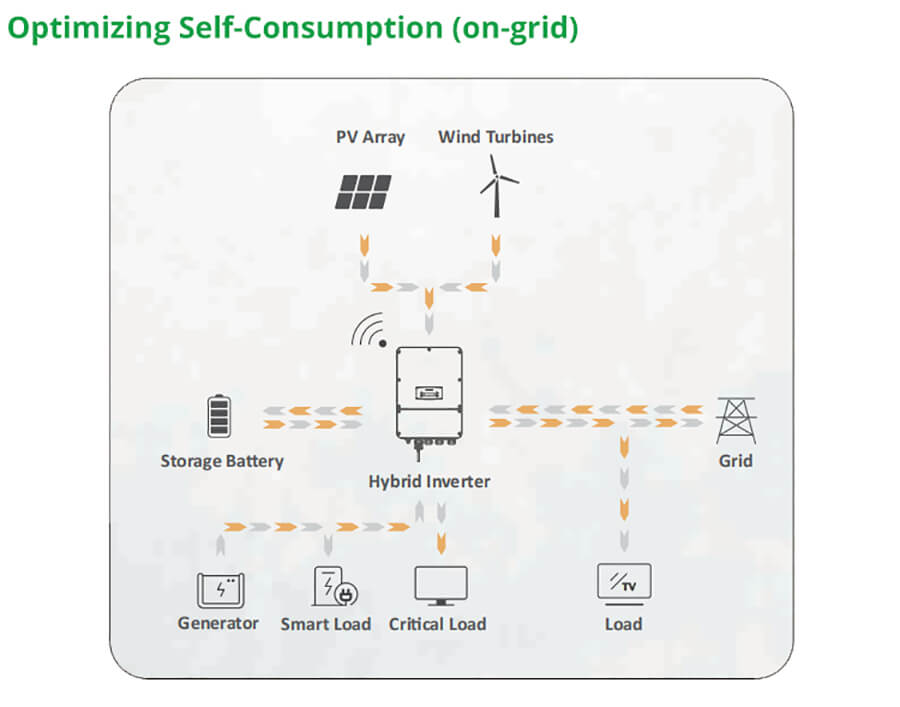

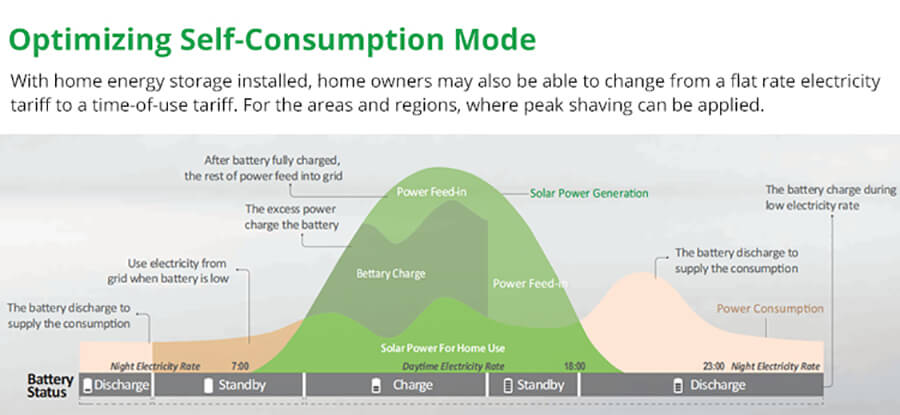

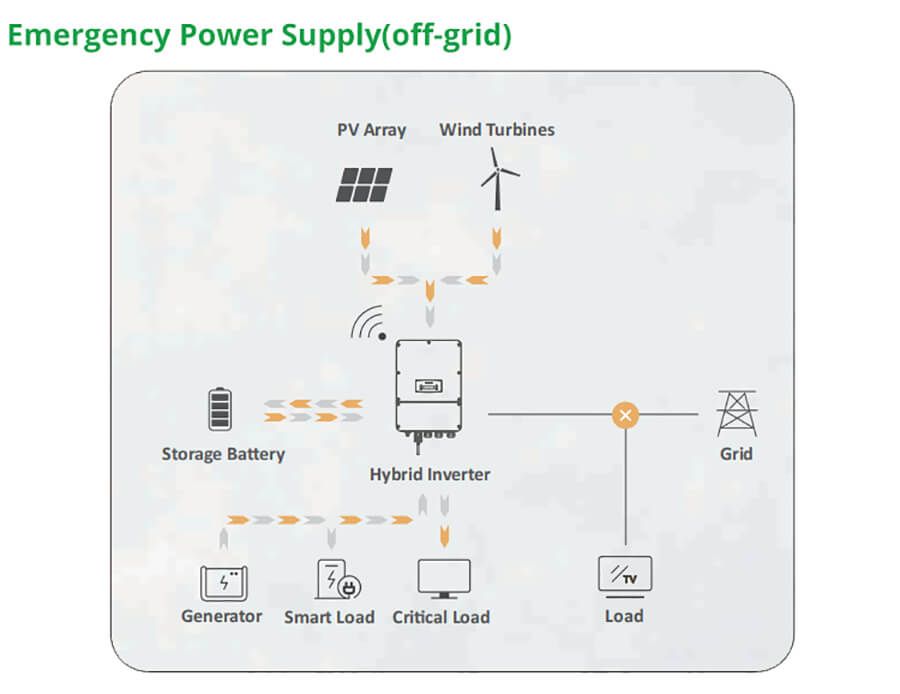

Hybrid Solar Inverter is compatible with both on-grid and off-grid PV systems. It can control the flow of energy intelligently. During daytime, the PV plant generates electricity which can be provided to the loads, fed into the grid or charge the battery. The electricity stored can be released when the loads require it, for example during the night. Additionally, the grid can also be used to charge the storage devices via the inverter (UPS function).
3 phase 8kw hybrid solar storage containers inverter combines a battery charging system, battery inverter, hybrid inverter, ... and to temporarily store surplus energy from a photovoltaic system in a battery storage device.
MPPT Hybrid Solar Inverter 7.6KW 8KW - Efficiency max 97.6% combines a battery charging system, battery inverter, hybrid inverter, ... and to temporarily store surplus energy from a photovoltaic system in a battery storage device.
Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany, Italy,Belgium, Spain etc.)
Components SW30KW-Hybrid SW50KW-Hybrid SW100KW-Hybrid SW120KW-Hybrid SW150KW- Hybrid 580W Mono Solar Panel 51 Pieces 85 Pieces 170 Pieces 204 Pieces 255 Pieces Combiner Box 3 in 1 out 5 in 1 out 10 in 1 out 12 in 1 out 15 in 1 out Hybrid Inverter 30kw 50kw 100kw 120kw 150kw 48V 100ah (LifePO4) Battery 8 Piece 8 Pieces 16 Pieces 20 Pieces 20 Pieces DC Cable 400 Meters 800 Meters 1600 Meters 2000 Meters 2400 Meters MC4 Connector 6 Pairs 10 Pairs 20 Pairs 24 Pairs 30 Pairs Mounting System Ground or Roof ( Customized Optional ) Product Details Our Factory Application Recommend Products
This popular hybrid solar inverter charger offers an efficient solution to convert solar power into AC electricity with intelligent MPPT technology and a lightweight, compact design.
This hybrid inverter converts 220V to 380V AC,powering 5KVA to 10KVA for off-grid solar systems.growatt's power converter is designed for reliability and safety,ideal as an AC backup power supply.
Gorwatt's innovative 3-6KW hybrid solar inverter offers a wide power range, high efficiency and smart energy management for optimized solar power generation and usage.
SUNPOLO 6KW pure sine wave solar hybrid inverter adopts advanced MPPT technology, it converts DC power from solar panels into AC power and provides continuous power to connected loads.
pvcellschains’ innovative single-phase solar inverters offer efficient, reliable and affordable renewable energy solutions for homes and businesses. Our top-selling Max models ranging from 3.6KW to 8KW suit any need.
The AF low voltage Series inverters are 1kW-6kW storage inverters for low voltage batteries that increase energy independence for homeowners. They reduce energy purchased from the grid through demand charge and time-of-use management. The inverters have a UPS function to power crucial loads during outages and can provide 150% peak power overload under backup mode. They also integrate AFCI and Rapid Shutdown functions.
The AF low voltage Series inverters are 1kW-6kW storage inverters for low voltage batteries that increase energy independence for homeowners. They reduce energy purchased from the grid through demand charge and time-of-use management. The inverters have a UPS function to power crucial loads during outages and can provide 150% peak power overload under backup mode. They also integrate AFCI and Rapid Shutdown functions.
