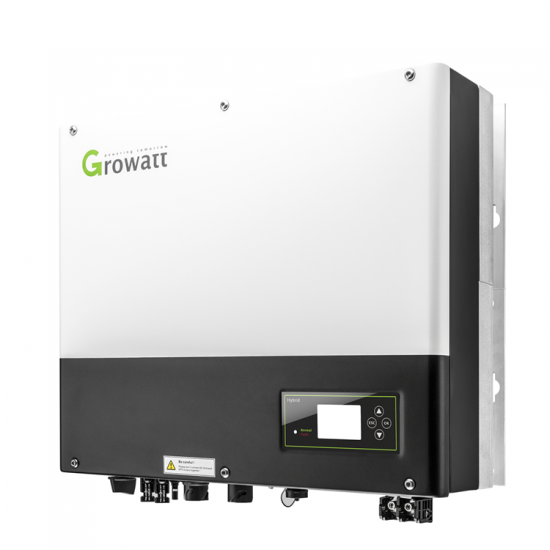

read morebrand:
pvcellschainitem no.:
SPH3000~6000Power:
3000W-6000WVoltage:
230VACCertificate:
CE/TUVPayment:
T/T, L/C, Alipay, Paypal, Western UnionWarranty:
5Years/10Years(opt)

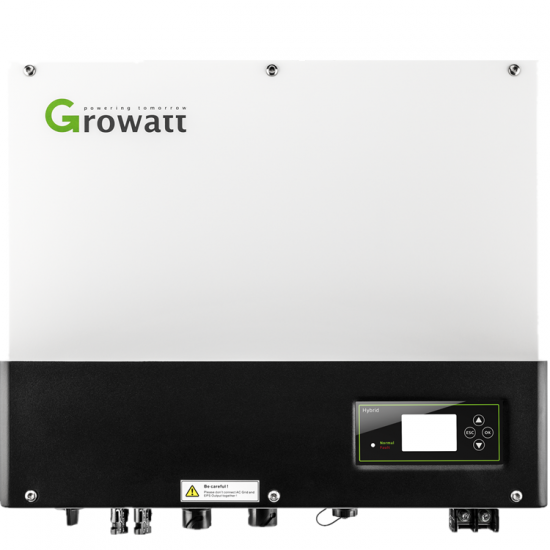

Hybrid solar inverter have function of both on grid inverter and off grid inverter,so hybrid solar system have the advantage
of on grid and off grid solar system,all equipments are connected to hybrid solar inverter,so the hybrid inverter is the most
important device for the system.
|

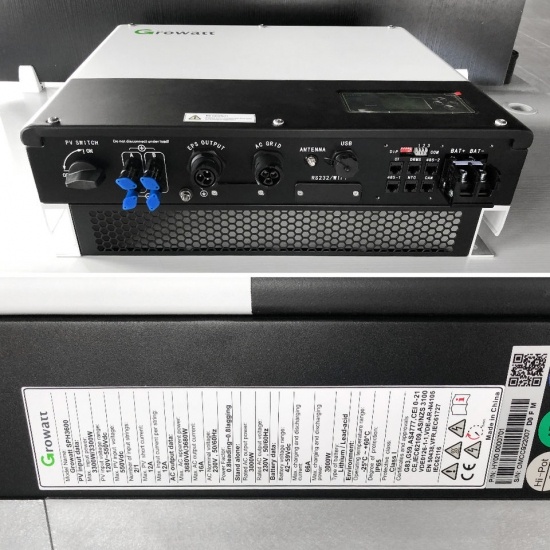

Datasheet
|
SPH3000
|
SPH3600
|
SPH4000
|
SPH4600
|
SPH5000
|
SPH6000
|
|
DC input data
|
||||||
|
Max. recommended PV power
|
6600W
|
6600W
|
6600W
|
8000W
|
8000W
|
8000W
|
|
Start voltage
|
150V
|
|||||
|
Max. PV voltage
|
550V
|
|||||
|
PV voltage range
|
120V-550V
|
|||||
|
MPPT voltage range
/nominal voltage |
150V-550V /360V
|
|||||
|
Max. input current of tracker A/B
|
12A/12A
|
|||||
|
Number of MPP trackers /
strings per MPP tracker
|
2/1
|
|||||
|
AC Output
|
||||||
|
Rated AC output power
|
3000W
|
3680W
|
4000W
|
4600W
|
4999W
|
6000W
|
|
Max. AC apparent power
|
3000VA
|
3680VA
|
4000VA
|
4600VA
|
5000VA
|
6000VA
|
|
Max. output current
|
16A
|
16A
|
22A
|
22A
|
22A
|
27A
|
|
Nominal AC output voltage
|
230V
|
|||||
|
Nominal grid frequency
|
50/60Hz
|
|||||
|
Power factor at rated power
|
1
|
|||||
|
THDI
|
<3%
|
|||||
|
AC output power(Backup)
|
||||||
|
Max. output power
|
3000W
|
|||||
|
Rated AC output voltage
|
230Vac
|
|||||
|
Rated AC output frequency
|
50/60Hz
|
|||||
|
Automatic switchover time
|
<0.5S
|
|||||
|
Battery data
|
||||||
|
Battery voltage range
|
42~59V
|
|||||
|
Max. charging voltage
|
58V
|
|||||
|
Max charging and discharging
current |
66A
|
|||||
|
Max charging and discharging
power |
3000W
|
|||||
|
Battery type
|
lithium /Lead-acid
|
|||||
|
Deep of discharging
|
80%DOD/50%DOD
|
|||||
|
Capacity of battery
|
3~12kWh
|
|||||
|
Efficiency
|
||||||
|
Max. efficiency
|
97.5%
|
97.5%
|
97.5%
|
97.6%
|
97.6%
|
97.7%
|
|
Euro European efficiency
|
97.0%
|
97.0%
|
97.0%
|
97.1%
|
97.1%
|
97.1%
|
|
MPPT efficiency
|
99.5%
|
|||||
|
Protection devices
|
||||||
|
DC switch
|
yes
|
|||||
|
DC reverse polarity protection
|
yes
|
|||||
|
Battery reverse protection
|
yes
|
|||||
|
Output over current protection
|
yes
|
|||||
|
Output over voltage protection
|
yes
|
|||||
|
Ground fault monitoring
|
yes
|
|||||
|
Grid monitoring
|
yes
|
|||||
|
Integrated all - pole sensitive
leakage |
yes
|
|||||
installation; multiple programmable working modes, decide by yourself how to realize self sufficiency and make the max out
of your system; the EPS output can even provide backup supply during grid absence;comprehensive accesories including
battery, meter and datalogger optional for different application scenarios.
pvcellschains’ innovative single-phase solar inverters offer efficient, reliable and affordable renewable energy solutions for homes and businesses. Our top-selling Max models ranging from 3.6KW to 8KW suit any need.
The AF low voltage Series inverters are 1kW-6kW storage inverters for low voltage batteries that increase energy independence for homeowners. They reduce energy purchased from the grid through demand charge and time-of-use management. The inverters have a UPS function to power crucial loads during outages and can provide 150% peak power overload under backup mode. They also integrate AFCI and Rapid Shutdown functions.
The pvcellschainAF Seriesstorage Inverters are designed to increase energy independence for homeowners. The power range is from 3.0kW to 9.6kW, compatible with high voltage (80-495V) batteries. Energy management is based on time-of-use and demand charge rate structures, signifcantly reduce the amount of energy purchased from public grid. Thanks for the UPs function (switch time < 10ms), enables the crucial loads power on during outages. Additionally, under the backup operation mode, the inverter provides you up to 150% peak output overloading. The AF Series storage inveters meet the U5 safety regulations, integrated with Arc Fault Circuit interrupter (AFCI) and Rapid Shutdown.
The AF low voltage Series inverters are 1kW-6kW storage inverters for low voltage batteries that increase energy independence for homeowners. They reduce energy purchased from the grid through demand charge and time-of-use management. The inverters have a UPS function to power crucial loads during outages and can provide 150% peak power overload under backup mode. They also integrate AFCI and Rapid Shutdown functions.

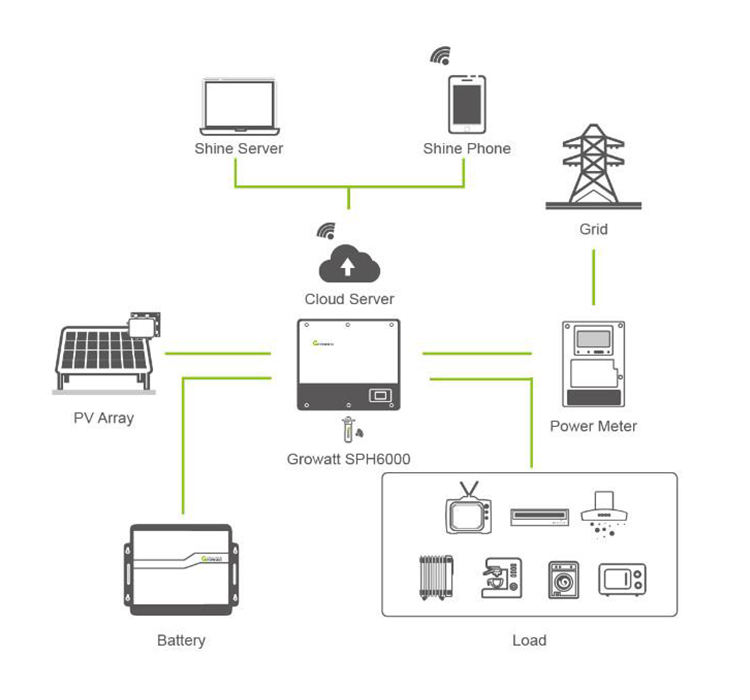

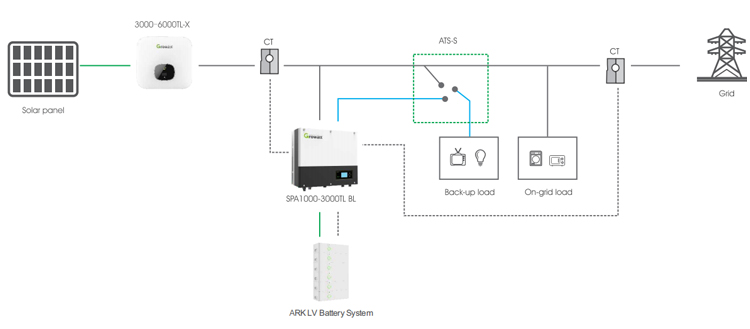

Hybrid Solar Inverter is compatible with both on-grid and off-grid PV systems. It can control the flow of energy intelligently. During daytime, the PV plant generates electricity which can be provided to the loads, fed into the grid or charge the battery. The electricity stored can be released when the loads require it, for example during the night. Additionally, the grid can also be used to charge the storage devices via the inverter (UPS function).
