product origin:
Anhuibrand:
pvcellschainitem no.:
pv Connectorshipping port:
Shanghailead time:
10-30payment:
EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,Certificate:
TUV/CEPayment:
T/T, L/C, Alipay, Paypal, Western Union

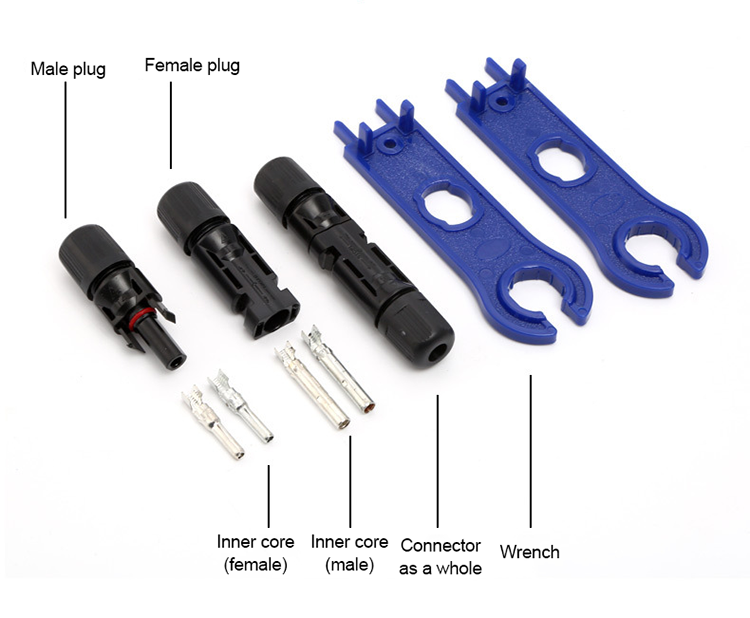

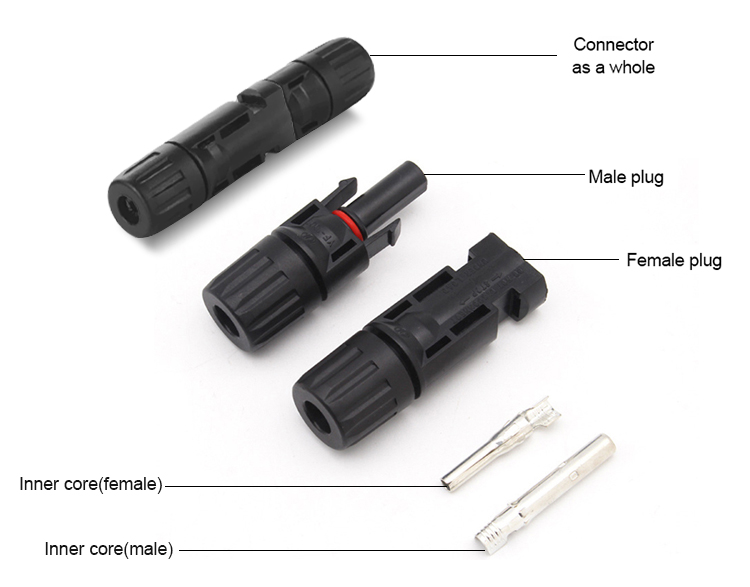

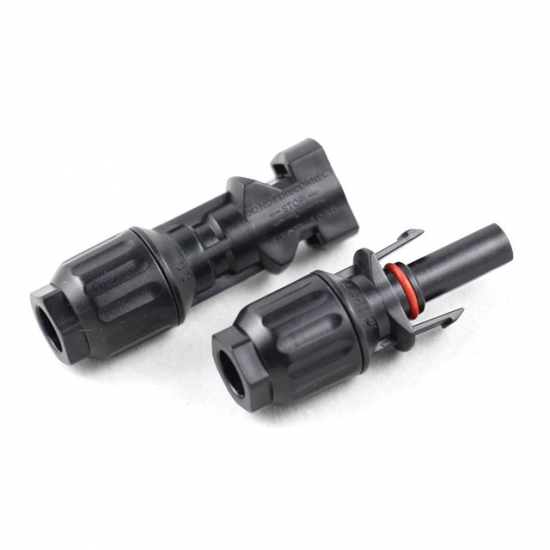

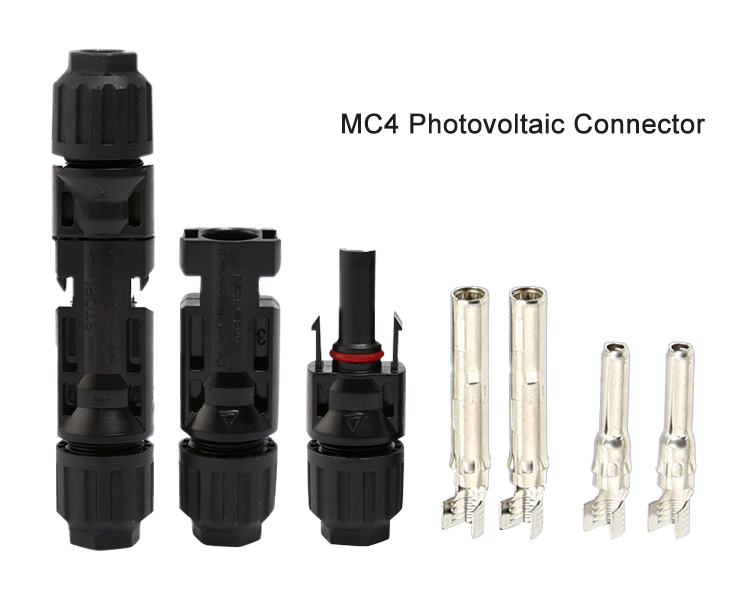

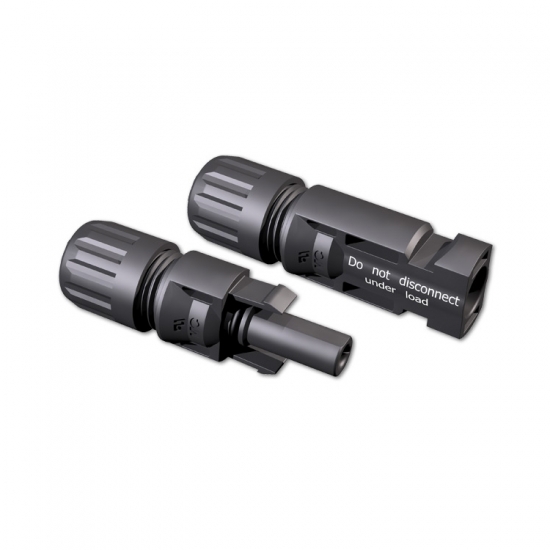

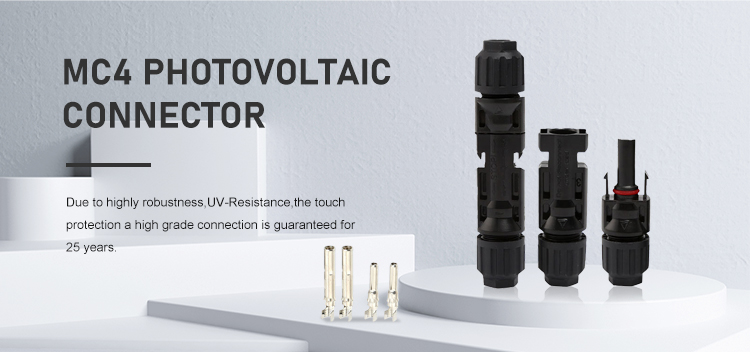

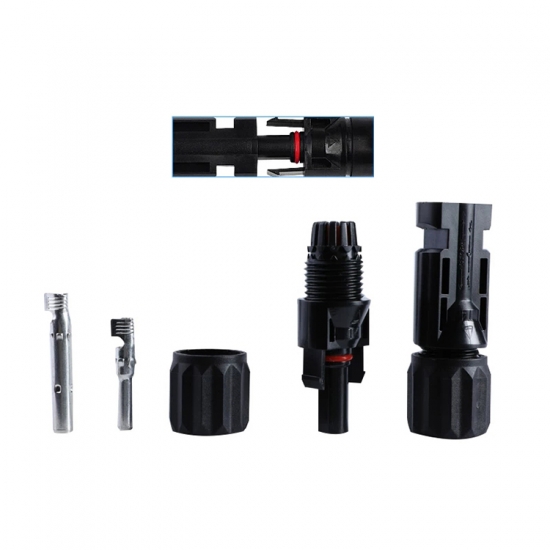

PV Connector is composed of metal parts and insulating parts. The connector is composed of male plug, female plug, inner core (female) and inner core (male). Hard plastic (pc/pa) is used as insulating material, which is easier to assemble and install on site in design. It is widely used in important components of photovoltaic power generation such as modules, combiner boxes and inverters, and undertakes the task of successful connection of power stations.
|
Product name
|
photovoltaic connector
|
Test voltage
|
DC6000V
|
|
Plug resistance
|
1mmΩ
|
Wiring specification
|
2.5mm2/4mm2
|
|
Inner core material
|
Copper tinned open type
|
temperature range
|
-40 ~ +125℃
|
|
Wiring mode
|
Crimping
|
Working current
|
≤30A
|
|
Length
|
Customized
|
working voltage
|
DC1500V
|

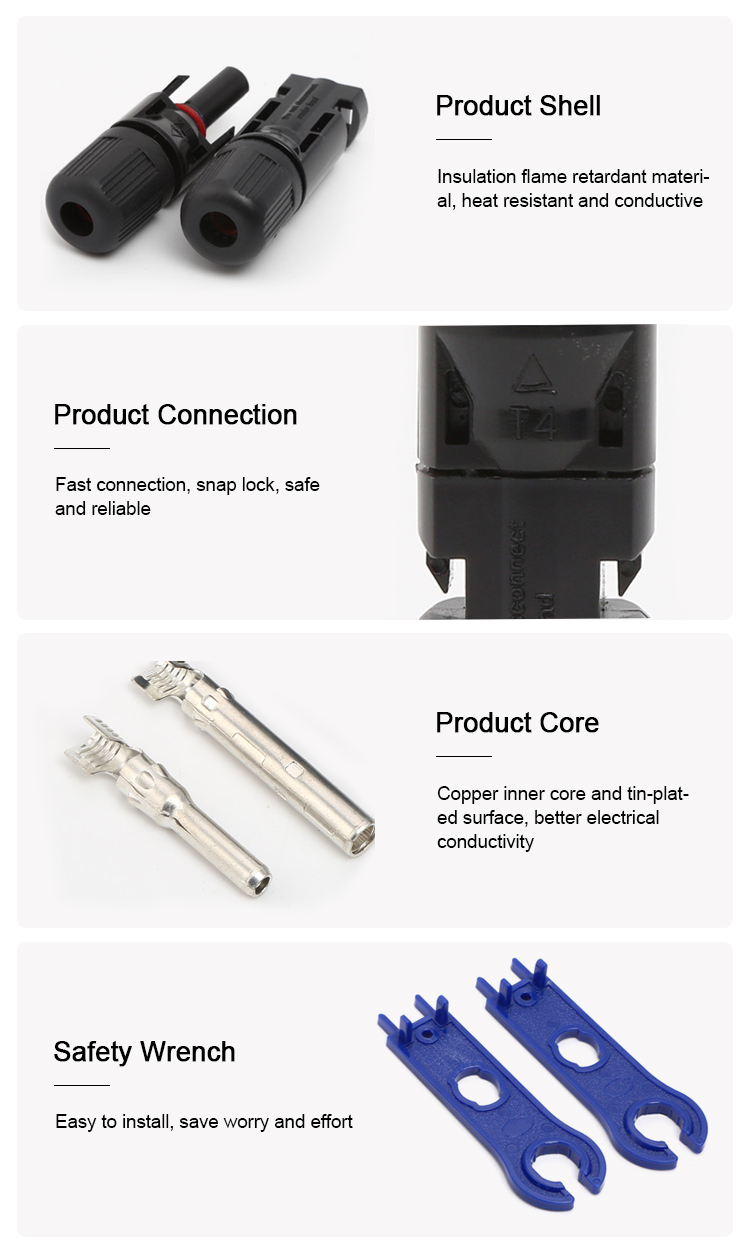

Photovoltaic connector is mainly composed of inner core and insulator shell. The shell of our product is made of insulating and flame retardant material, with good heat resistance and anti conductivity; The inner core of the product is made of copper and tin, which means its conductivity is better. If you need anything, you can contact our salesman.
