product origin:
Chinabrand:
pvcellschainitem no.:
SW-2V800AH-OPzvshipping port:
Shanghai/Ningbo/Guangzhoucolor:
Optionallead time:
1weekpayment:
T/T,Alibaba Trade Assurance,Credit Card,etc.Sealed Type:
SealedVoltage:
2Vcapacity:
800AhMaintenance Type:
FreeCertificate:
CEWarranty:
5YearsBattery type:

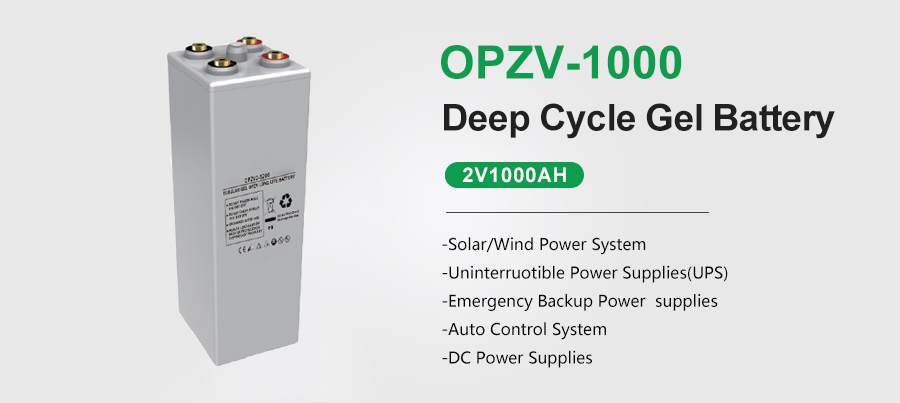

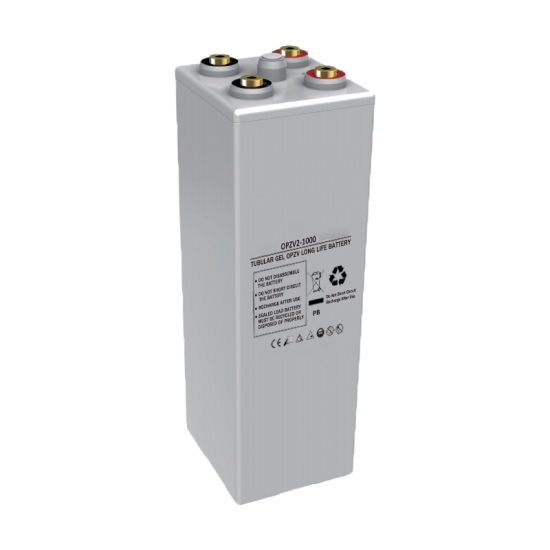

OPZV GELBatteries 2V 1000AH Solar Storage Tubular Gel Battery
Products Specification
|
Model |
OPZV- 2V 1000AH |
| Nominal Voltage |
2V |
| Nominal Capacity | 1000AH@10 hour rate F.V.(1.8V/Cell) |
| Approx.Weight |
80Kg(176.36lbs)
|
| Terminals | M8 Female Large Size Copper Post |
|
Internal Resistance |
≤0.33mΩ（Fully Charged） |
| Max. Discharge Current |
8000A (3s) |
| Max. Charge Current | 200A |
| Self Discharge |
About 2.0% of Capacity Delined per Month at 25℃ |
| Operating Temperture Range |
Charge: -20℃~+50℃ (-4℉~+122℉) |
|
Discharge: -40℃~+55℃ (-40℉~+131℉) |
|
| Storage: -20℃~+40℃ (-4℉~+104℉) |

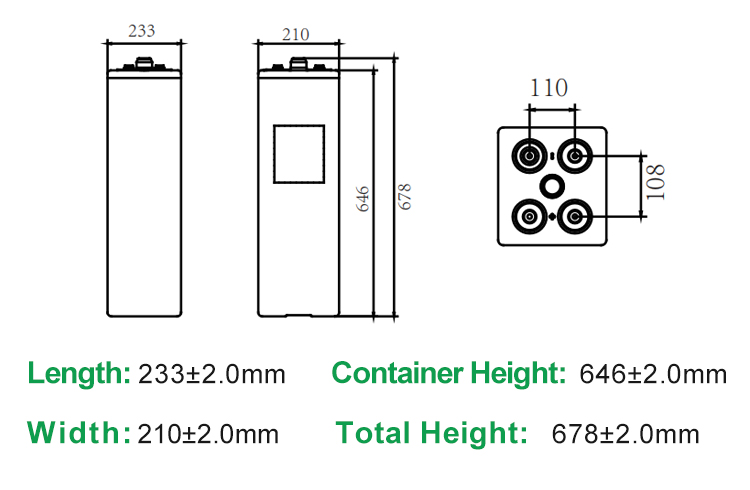

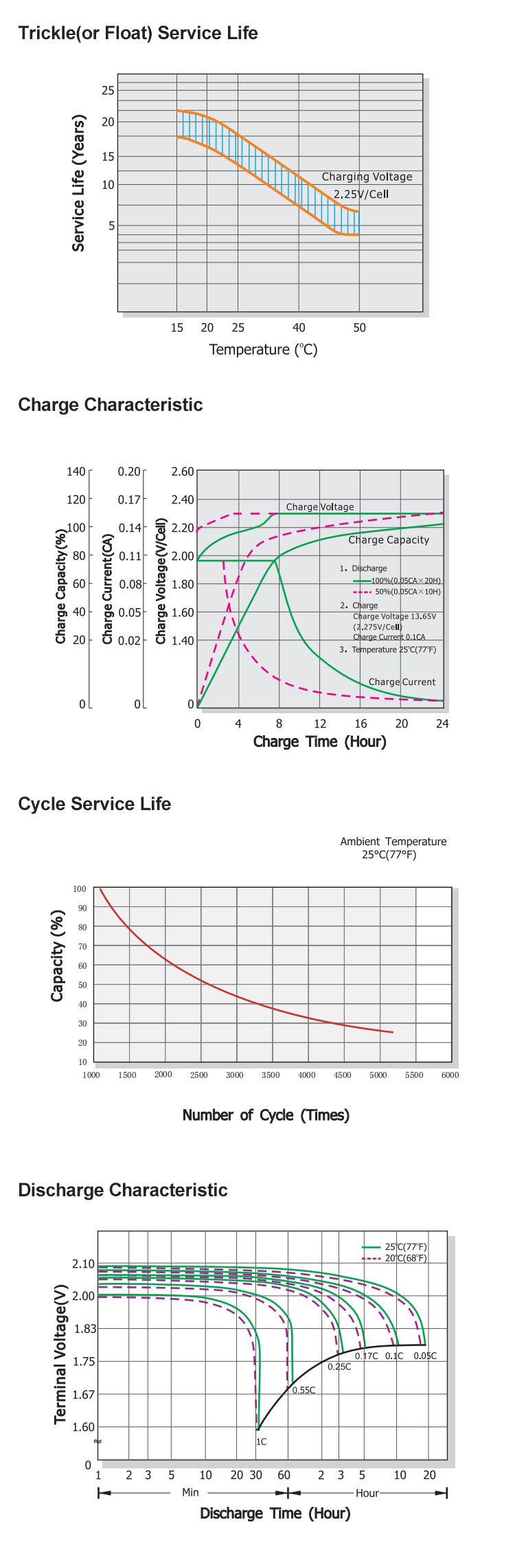

Tech Diagram

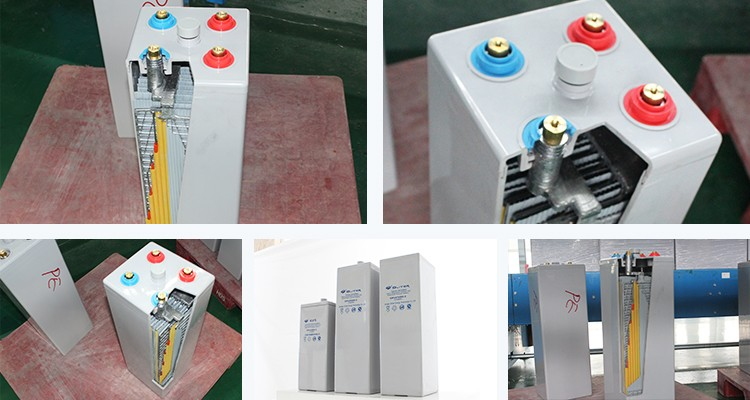

Detailed Images

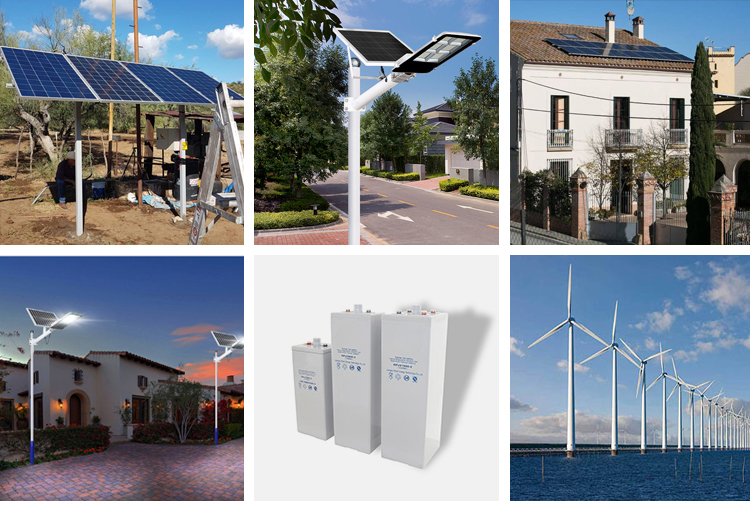

Products Projects
The OPzV batteries feature tubular grids and multi-tube guantlets that encapsulate the positive plate active material resulting in cycling stability, longer life and higher capacity than flat plate batteries.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
